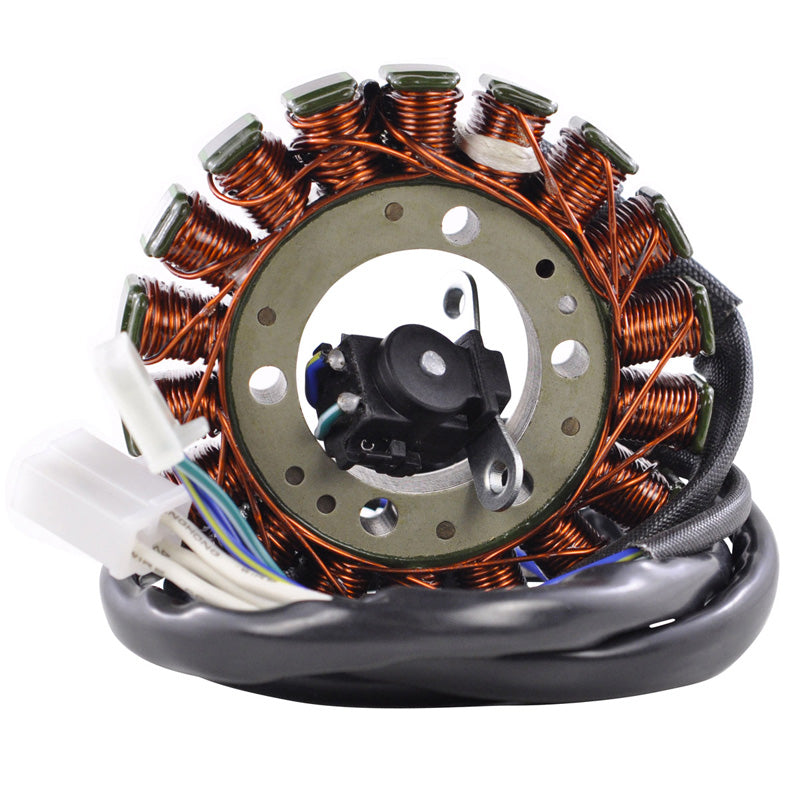

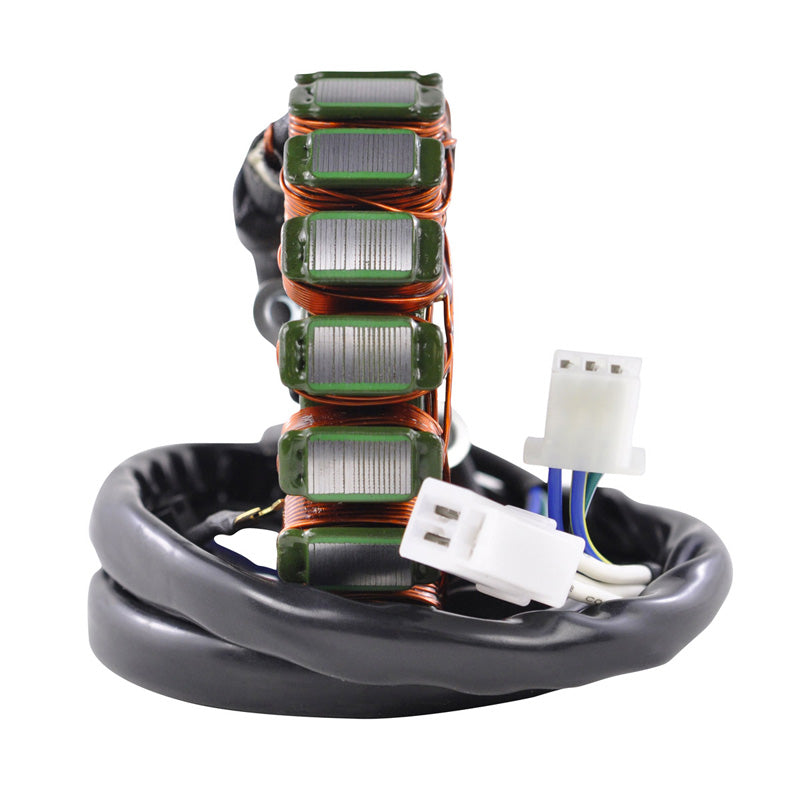

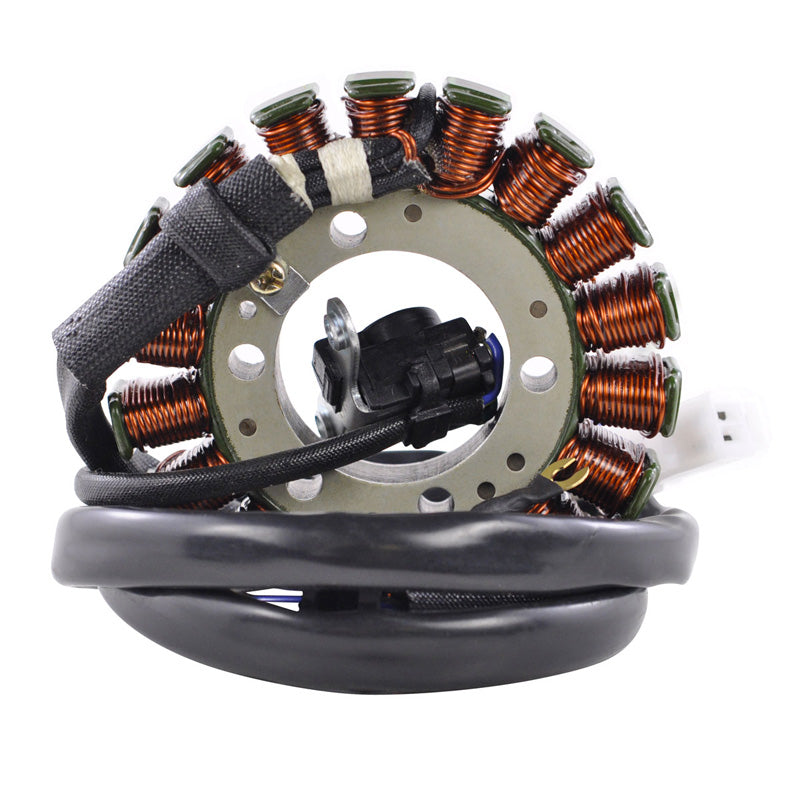

RMS STATOR YAM VIRAGO|V-STAR 250 95-21 RM01557

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included

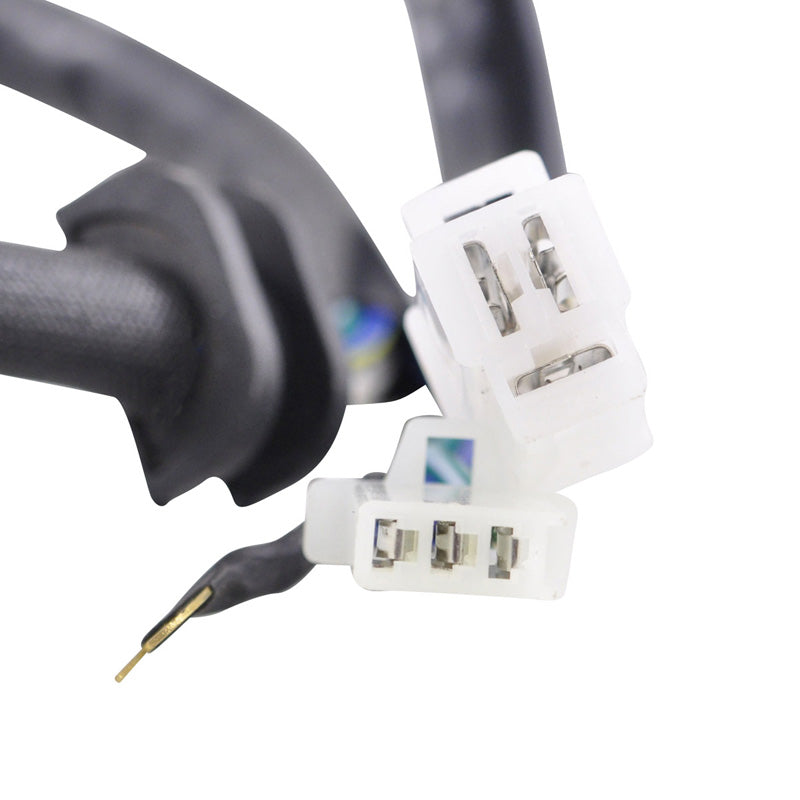

• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 103 mm
Thickness : 18 mm
Length of wires stator to grommet 1 : 122 mm

Length of wires between grommets : 80 mm
Length of wires grommet to plug : 805 mm
Length of pickup coil's wire to grommet : 125 mm

Other specifications :
Number of wires : 6
Number of plugs : 2
Number of pins :6

Wire to wire resistance :
Alternator : White between White = 0.5 ohms +-20%
Pickup :Green/White to Blue/Yellow = 240 ohms +-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
