Highest grade copper windings, resistant to 200 degrees Celsius.

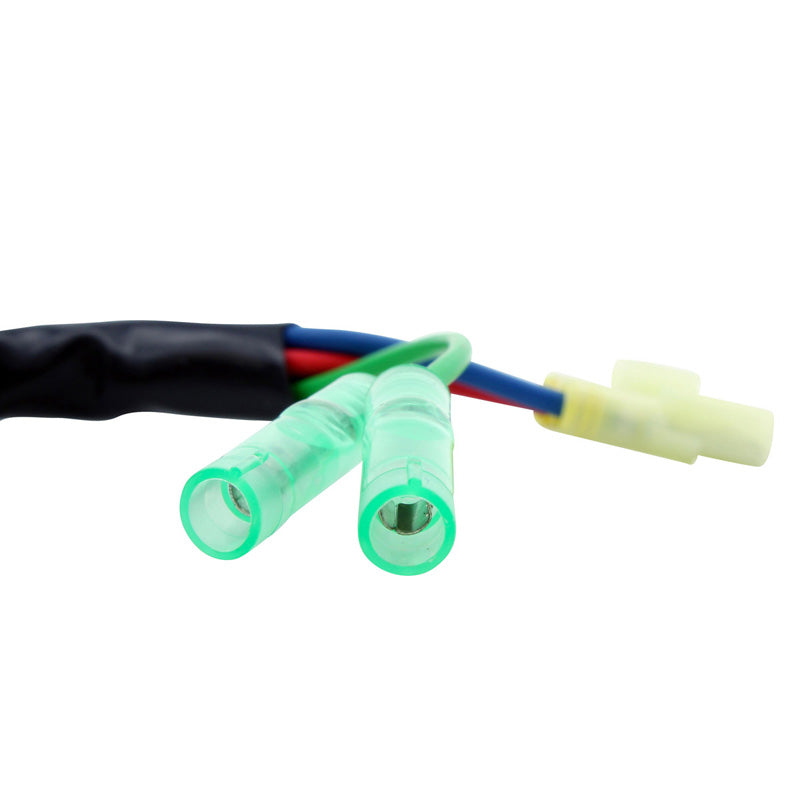

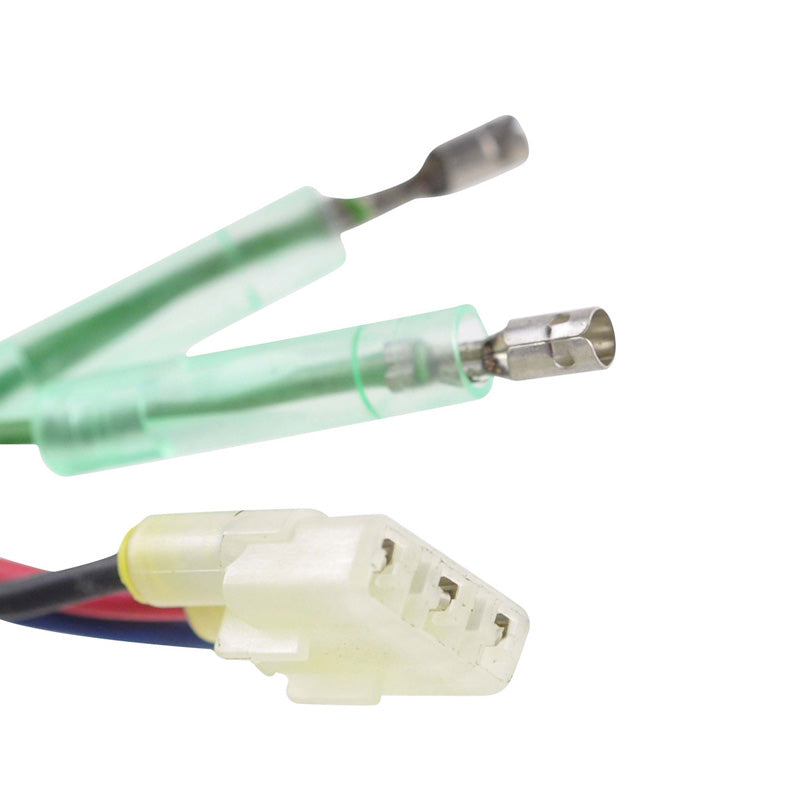

Connector included
All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 107 mm
Thickness : 10 mm
Length of wires stator to green plugs : 123 mm
Length of wires stator to other plug : 93 mm
Other specifications :
Number of wires : 5
Number of plugs : 3
Number of pins : 3
Wire to wire resistance :
Alternator : Green to Green = 0.8 ohms +-20%
Source : Black/Red to Blue = 811 ohms +-20%
Source 2 : Black/Red to Red = 208 ohms +-20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
