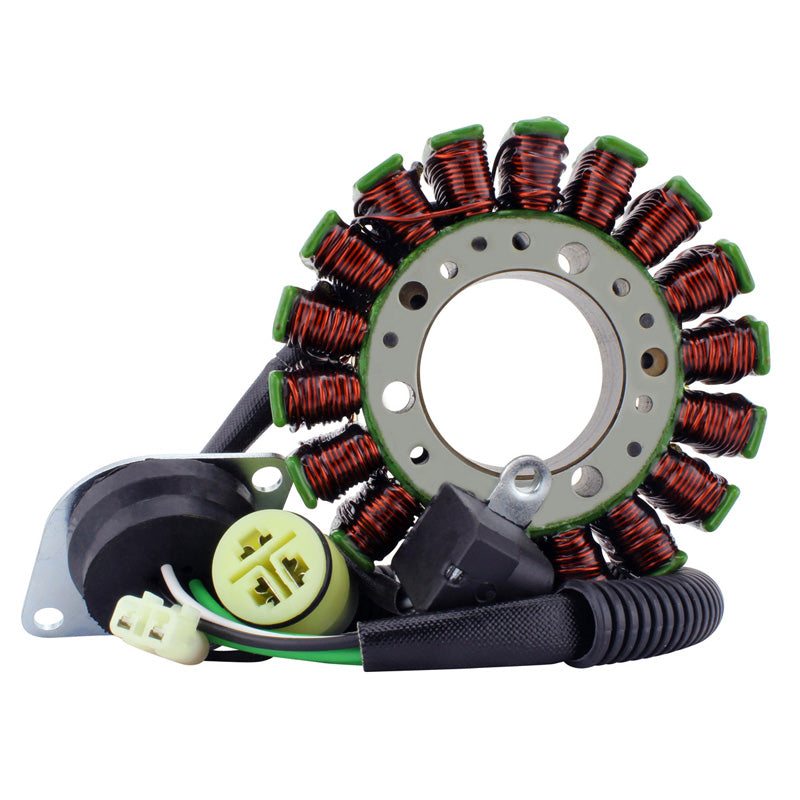

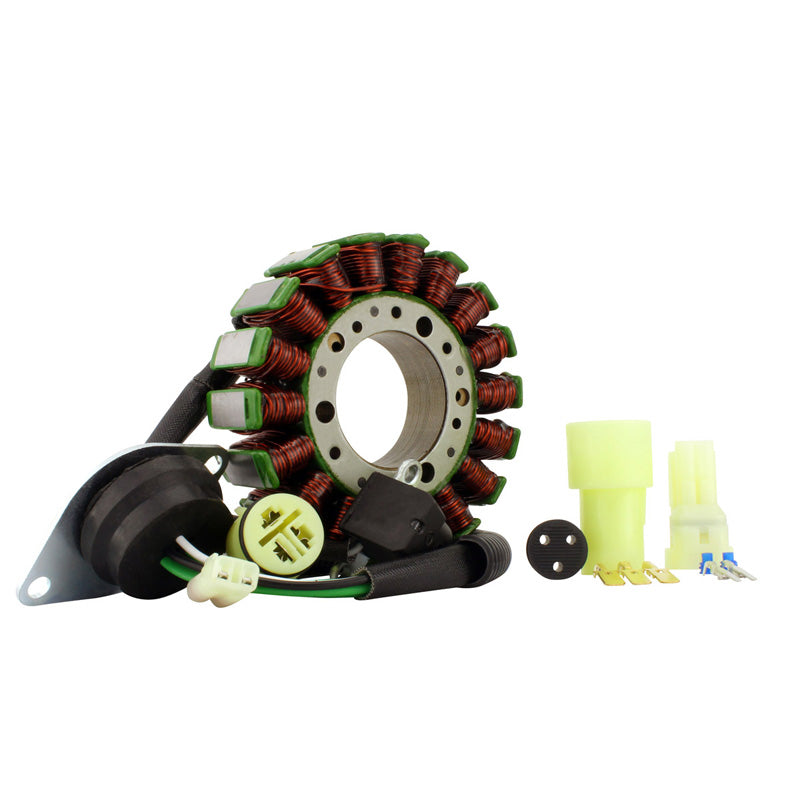

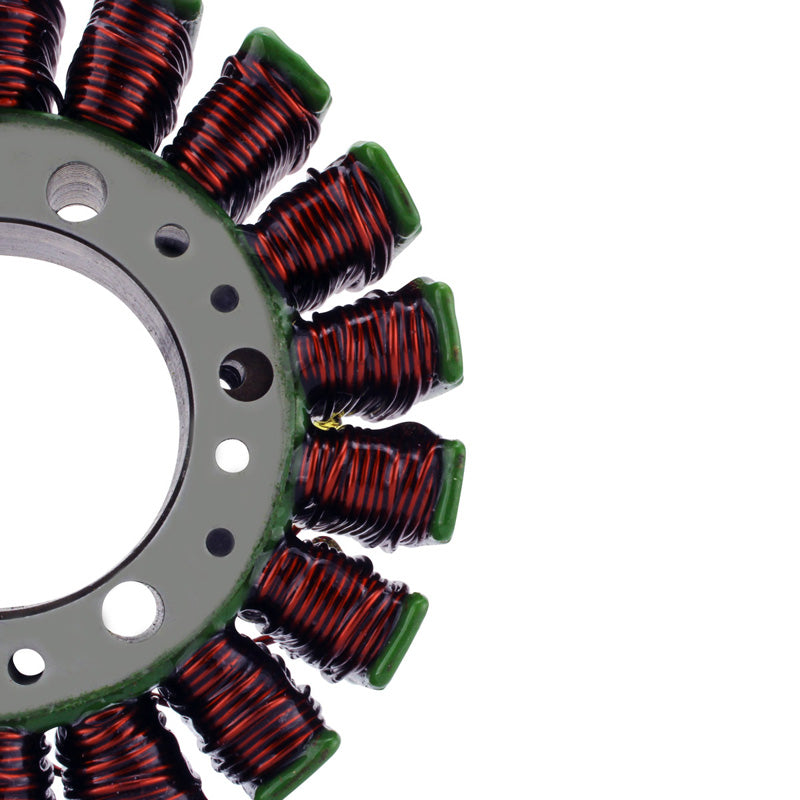

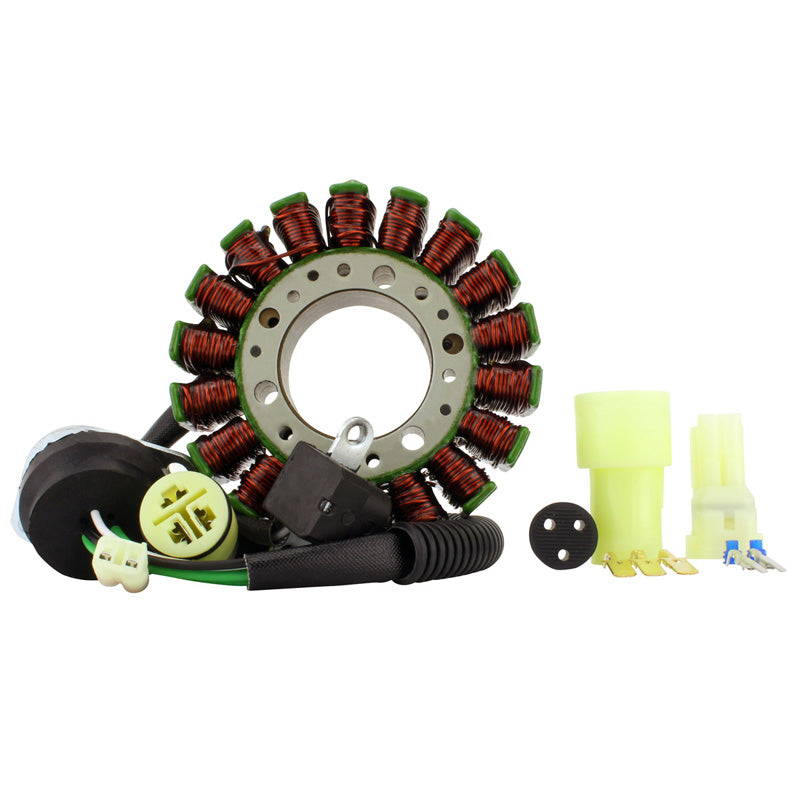

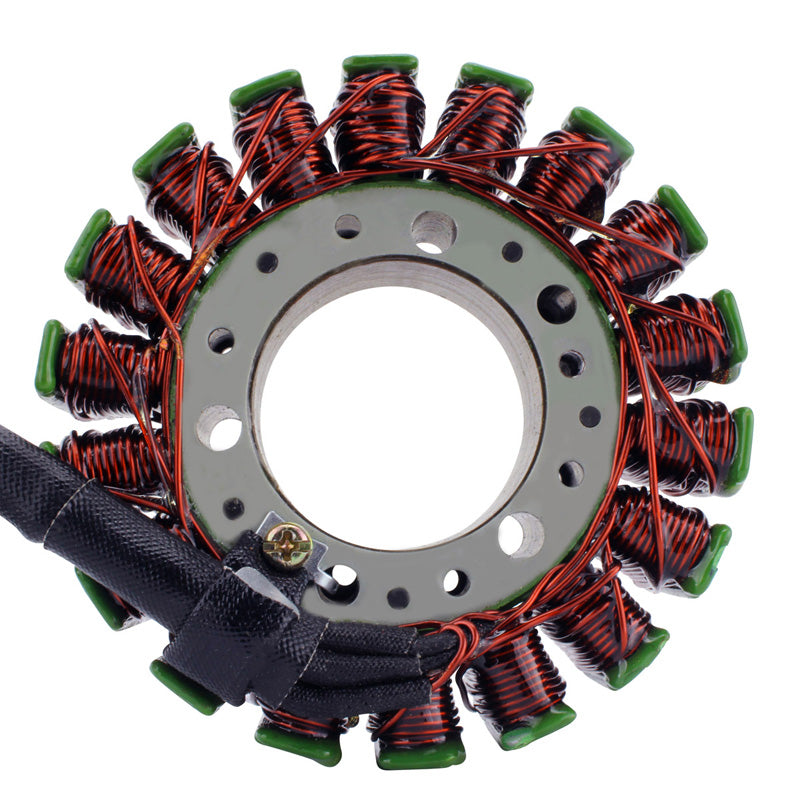

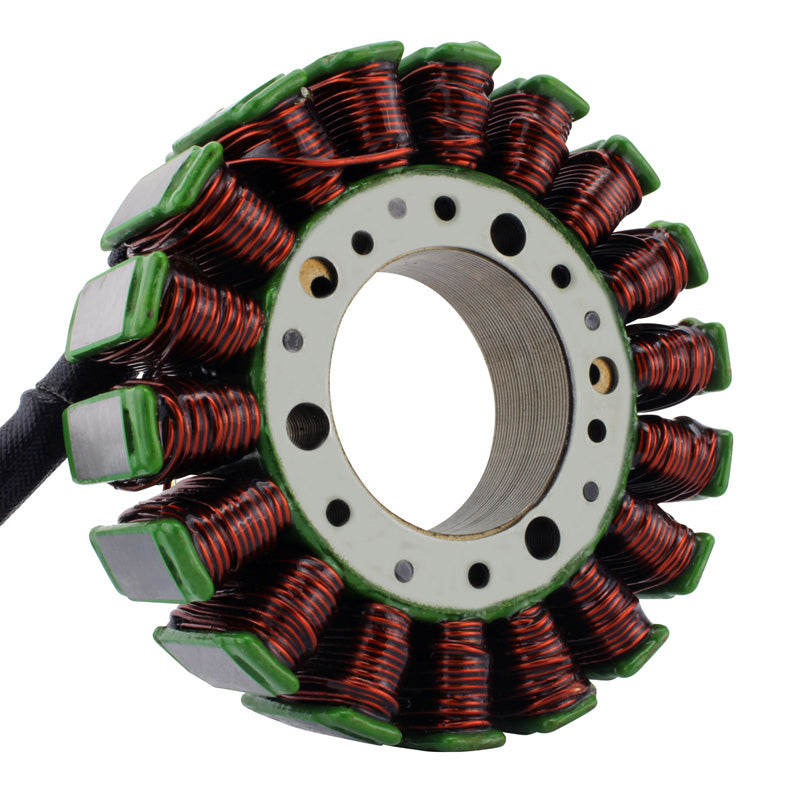

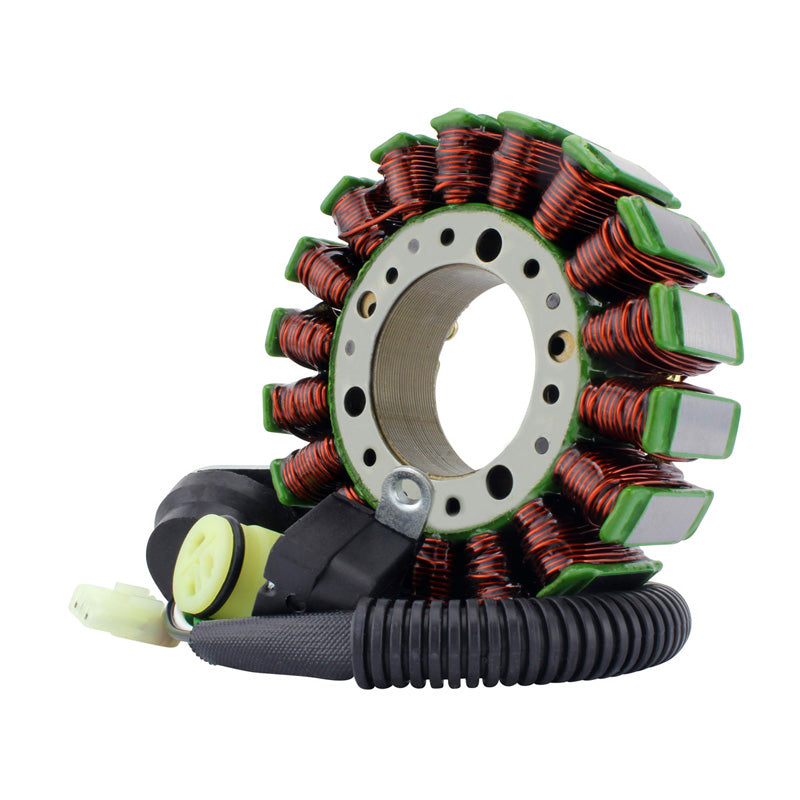

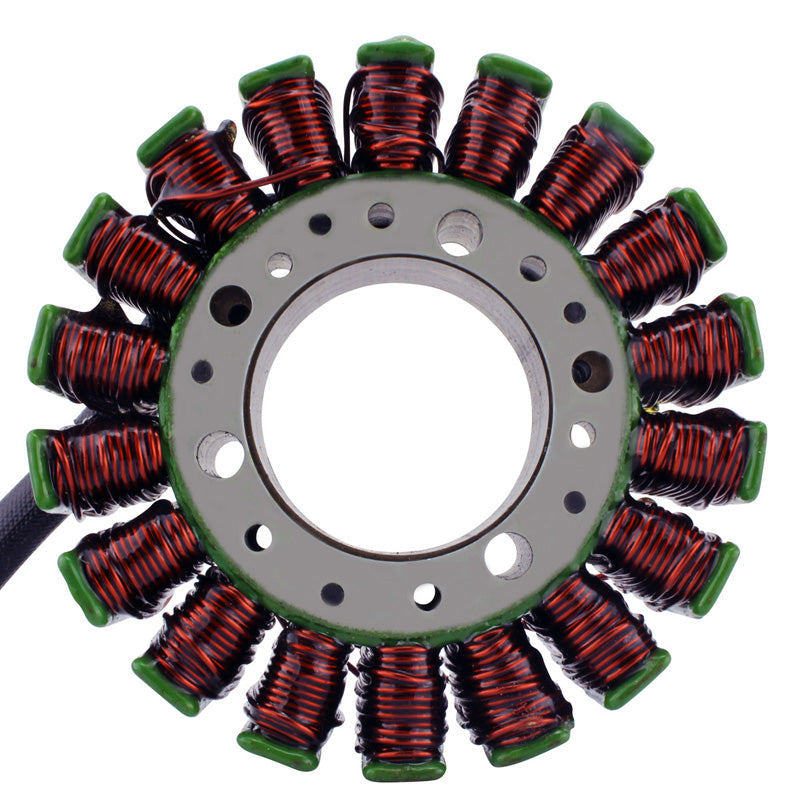

Highest grade of copper winding, resistant to 200 degrees Celsius

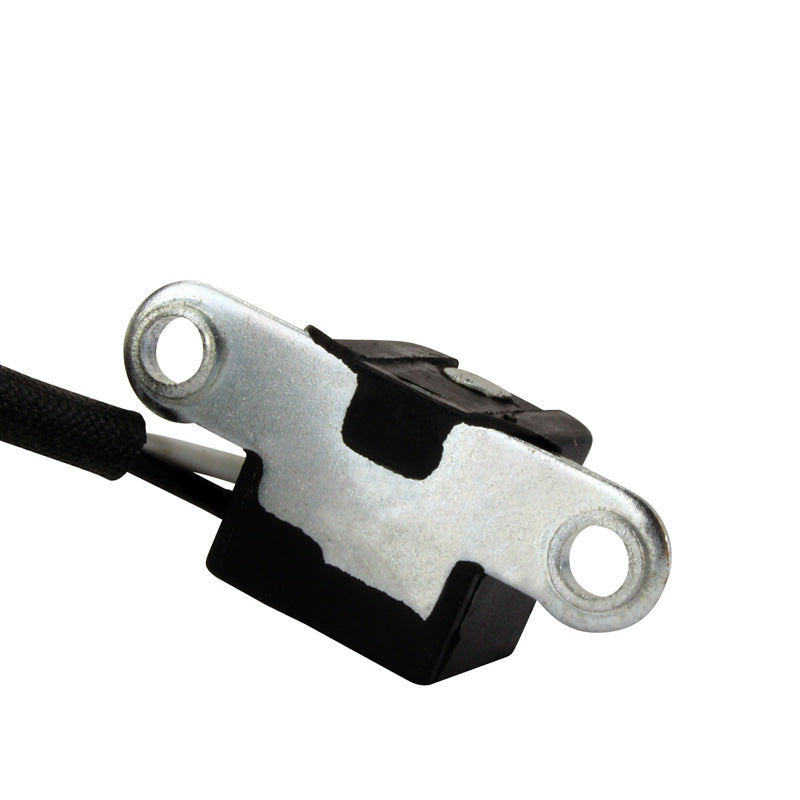

Pick up pulsar coil included

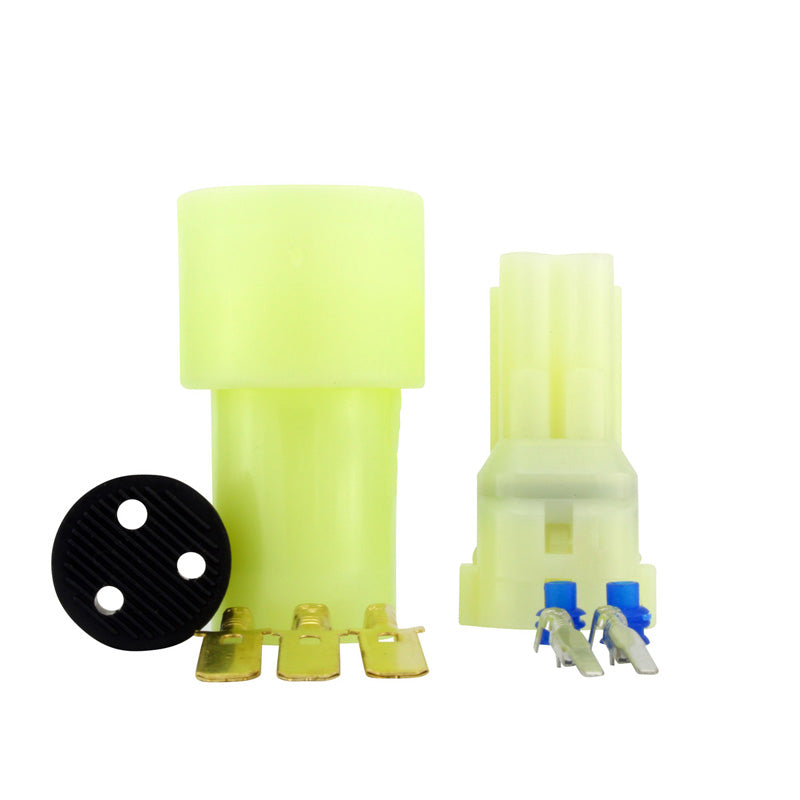

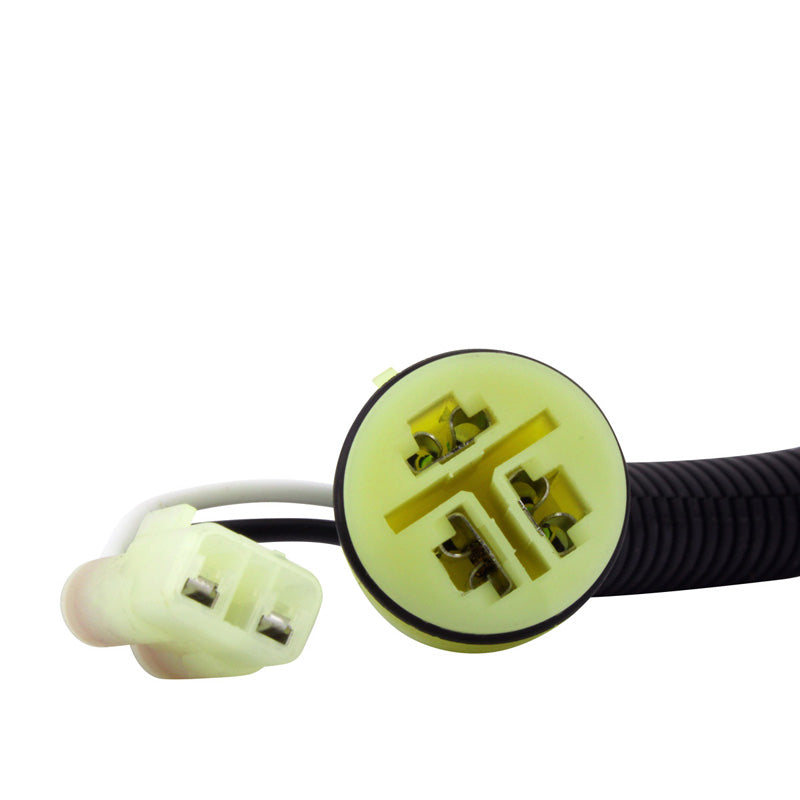

Connectors included

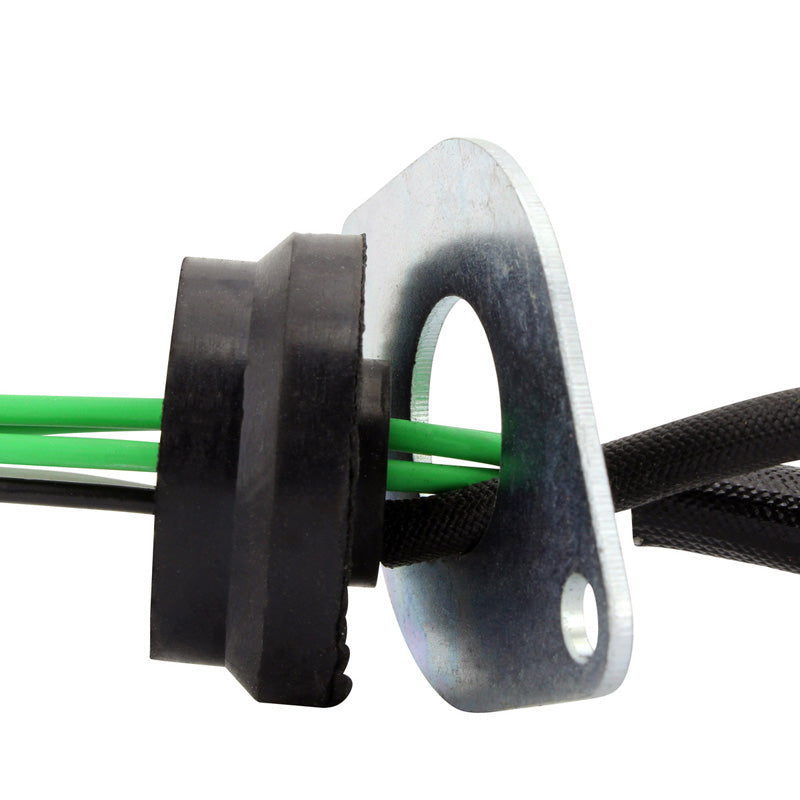

Rubber grommet included
All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications:
Dimensions:
Interior diameter: 42mm
Exterior diameter: 104mm
Thickness: 22mm
Length of wires stator to grommet: 50mm
Length of wires grommet to plug: 280mm
Length of pickup coil's wire to grommet: 130mm
Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: Green to Green = 0.7 ohms +-20%
Pickup: Black to White = 500 ohms +-20%
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
