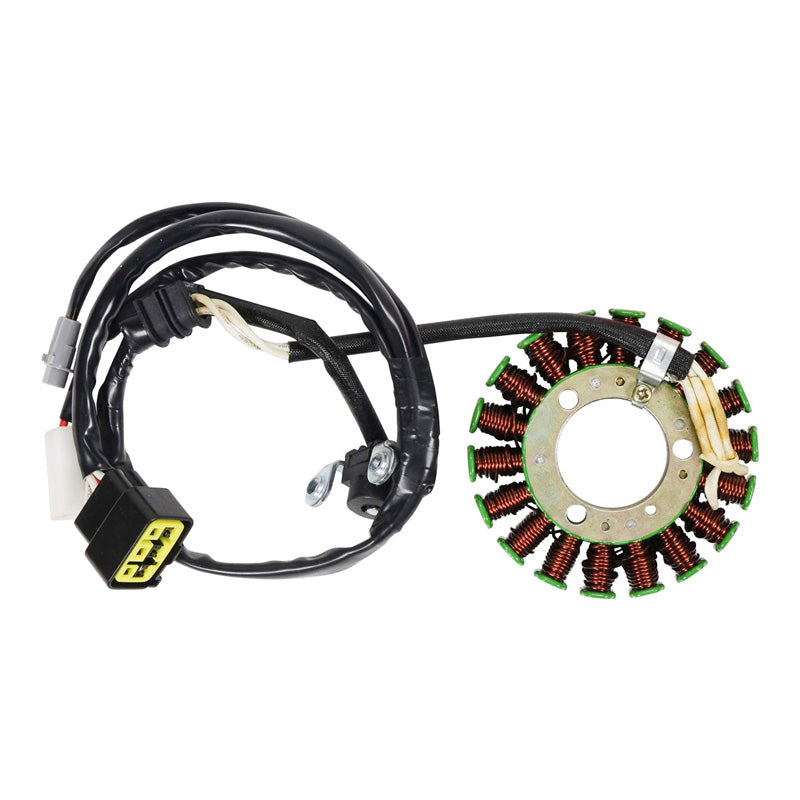

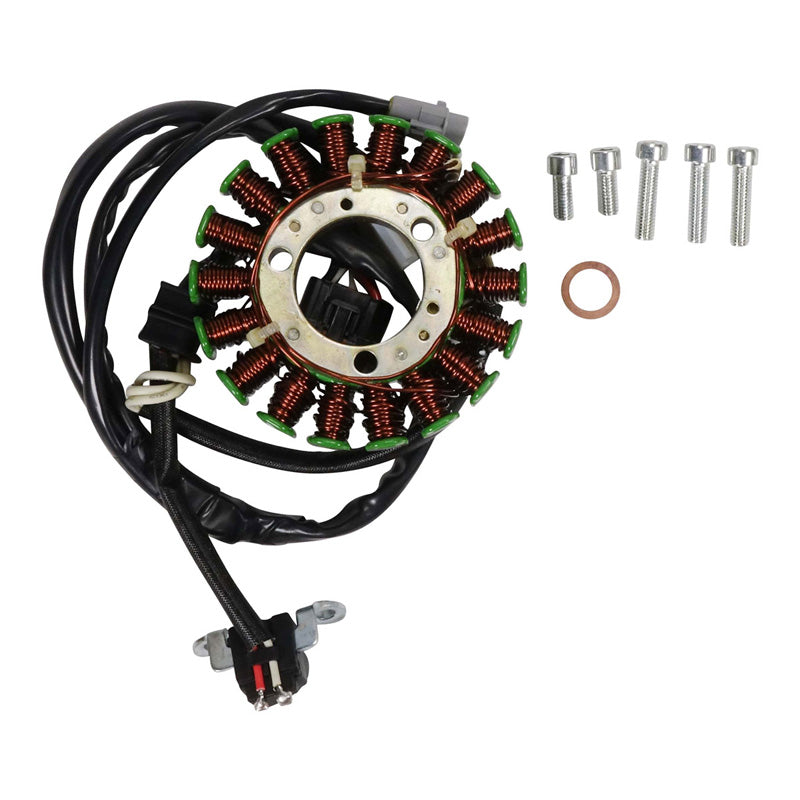

RMS STATOR YAM WR250R 08-20|WR250X 08-11 RM01448

Brand-new stator.

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• Highest-grade lamination materials.
• Highest-grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included.

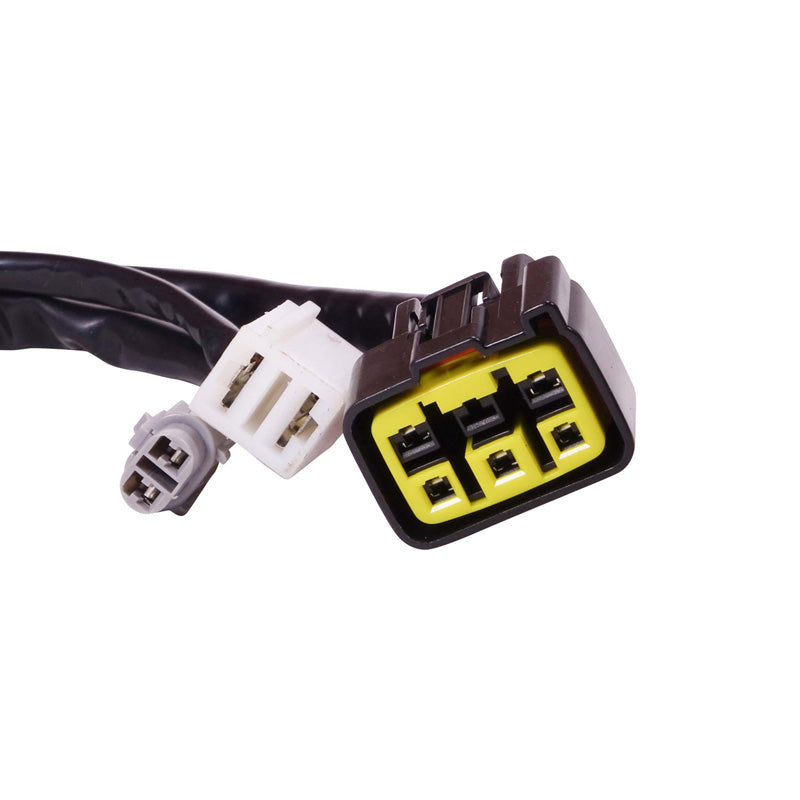

• Connector included.
• Rubber grommet included.
• All products shipped are tested.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 35 mm
Exterior diameter: 98 mm
Thickness: 15 mm
Length of wire stator to grommet: 140 mm
Length of wire grommet to plug: 400 mm
Length of pickup coil's wire to grommet: 85 mm


Other specifications:
Number of wires: 7
Number of plugs: 3
Number of pins: 9

Wire to wire resistance:
Alternator: white between each white = 0.4 ohms +/-20%
Pickup: pink to white = 265 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
