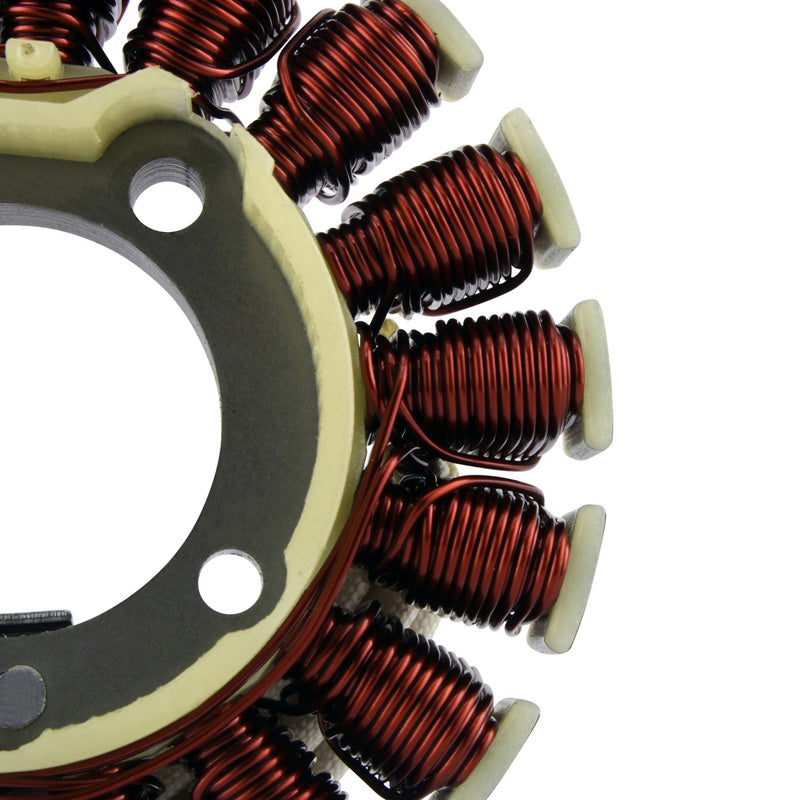

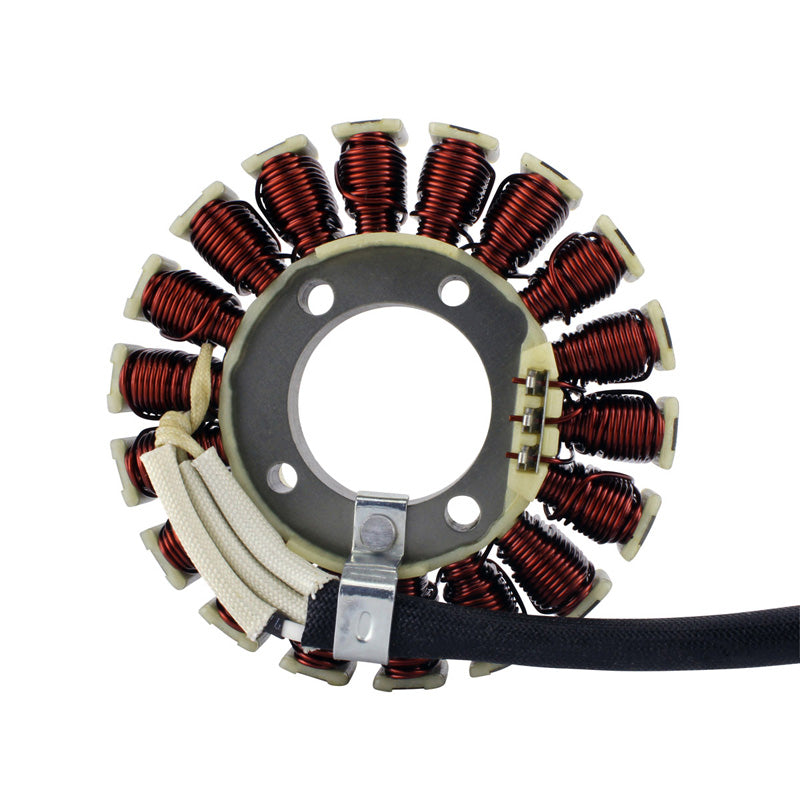

Highest grade of copper winding, resistant to 200 degrees Celsius

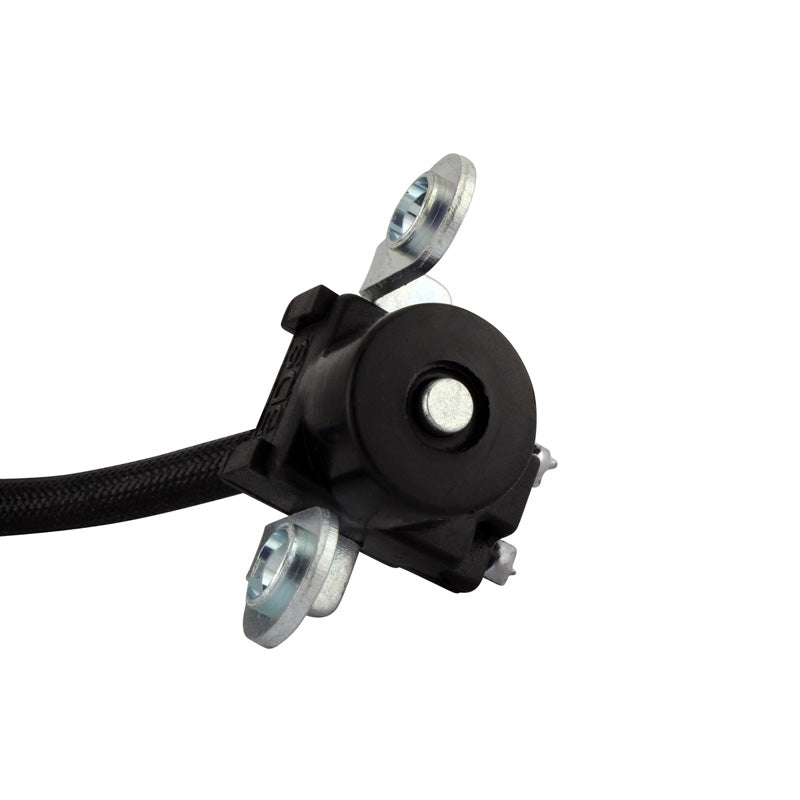

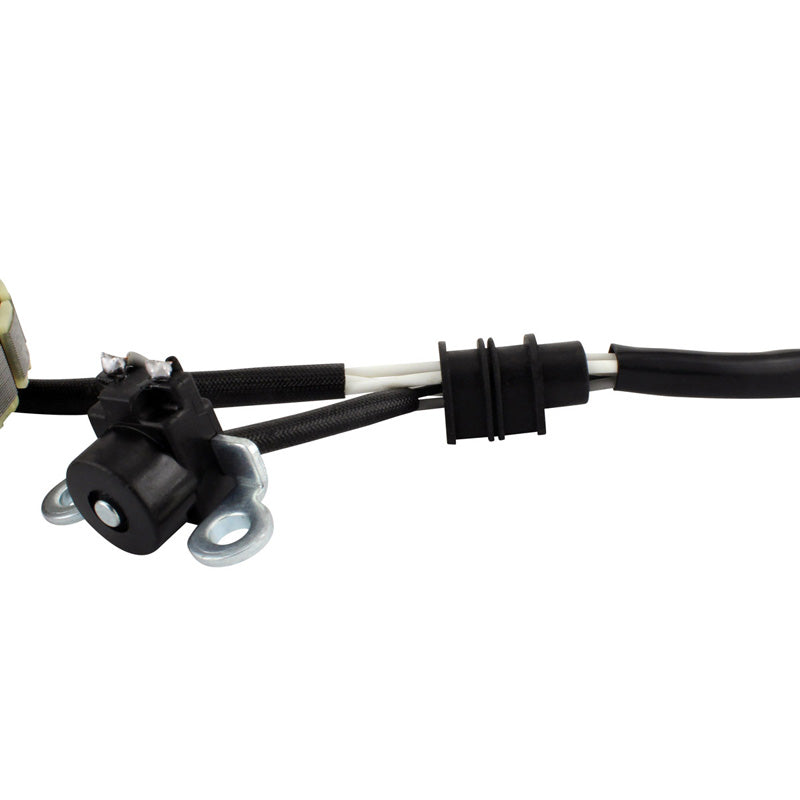

Pick up pulsar coil included

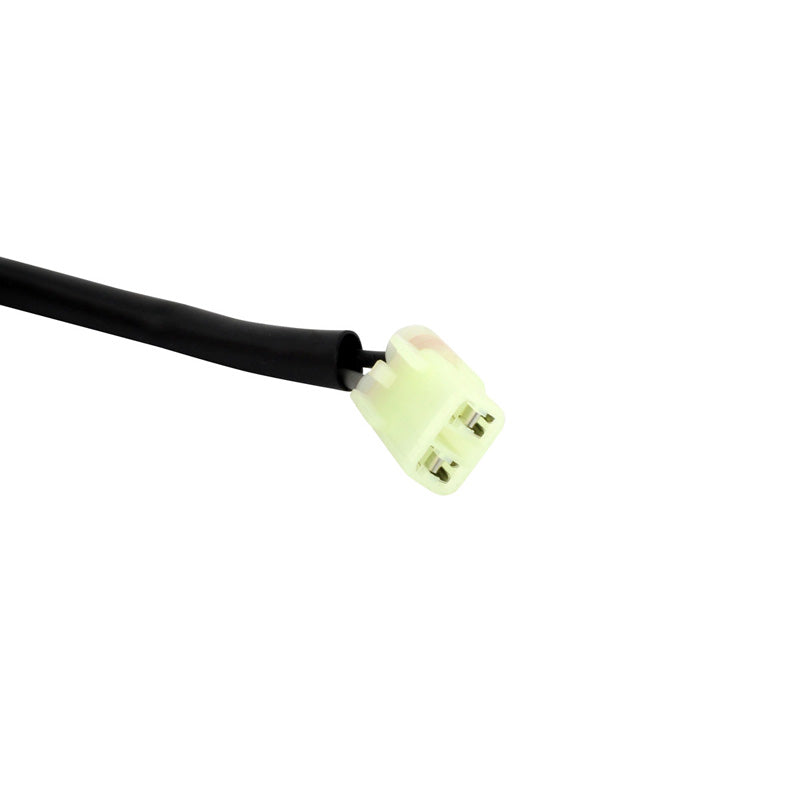

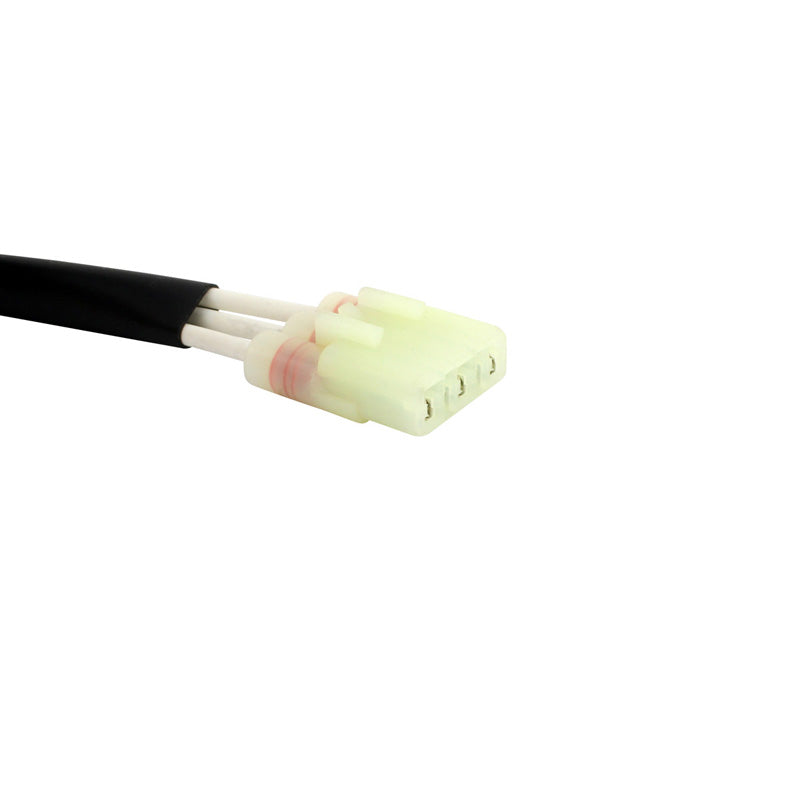

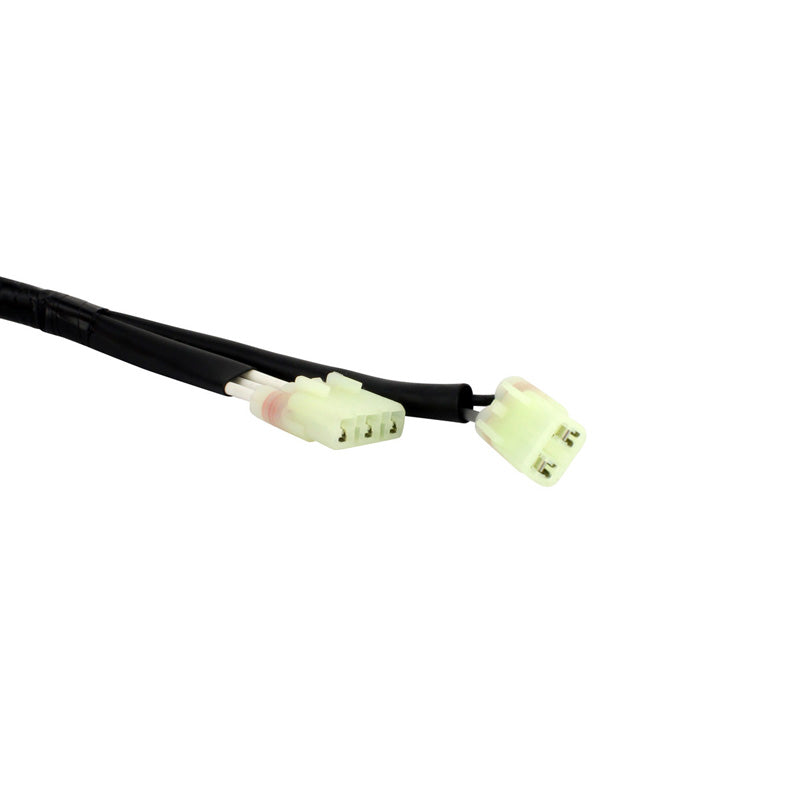

Connectors included

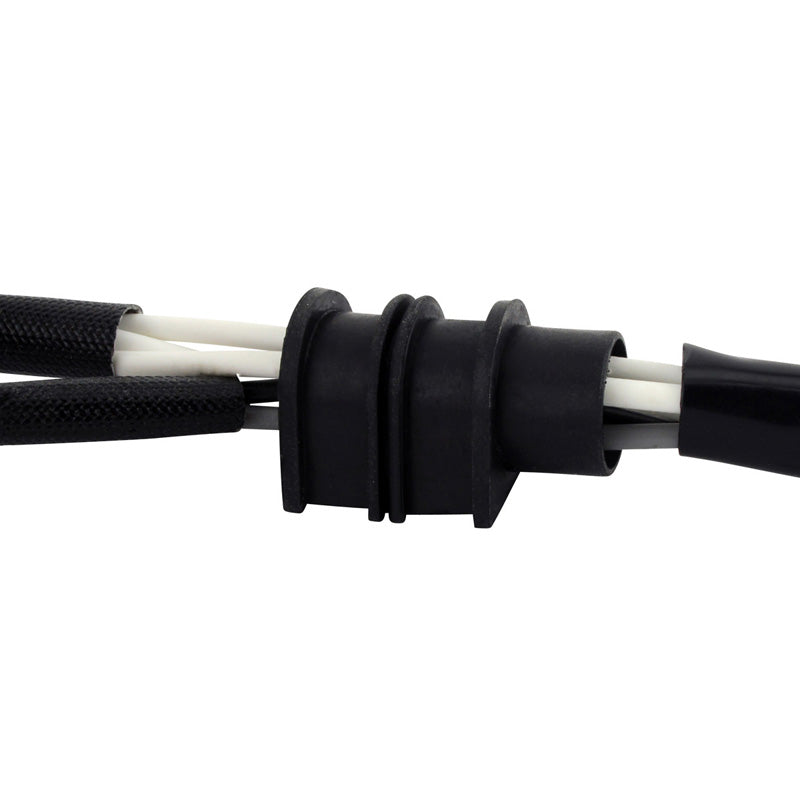

Rubber grommet included
All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

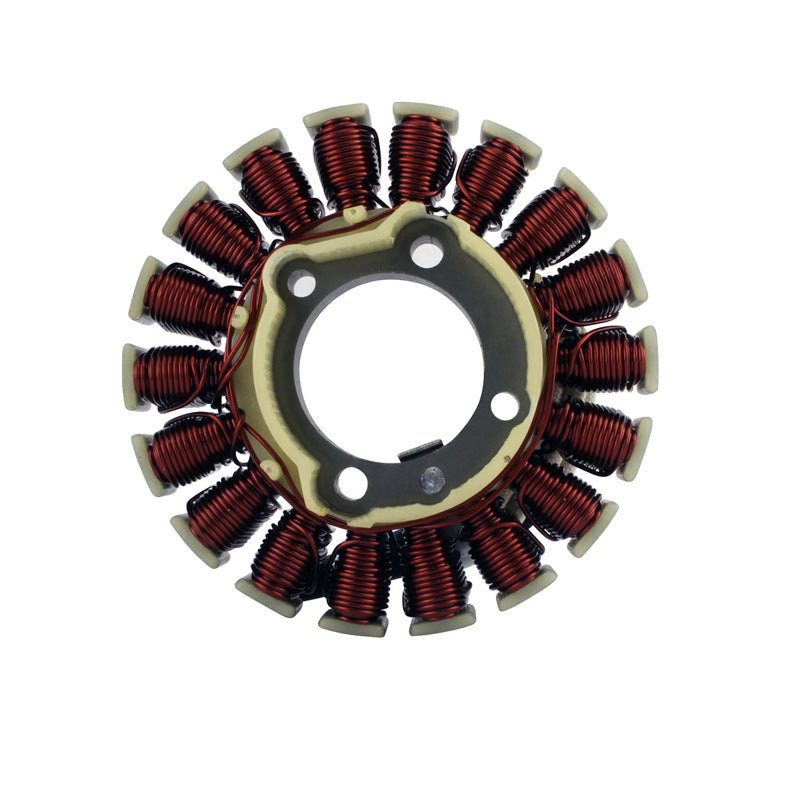

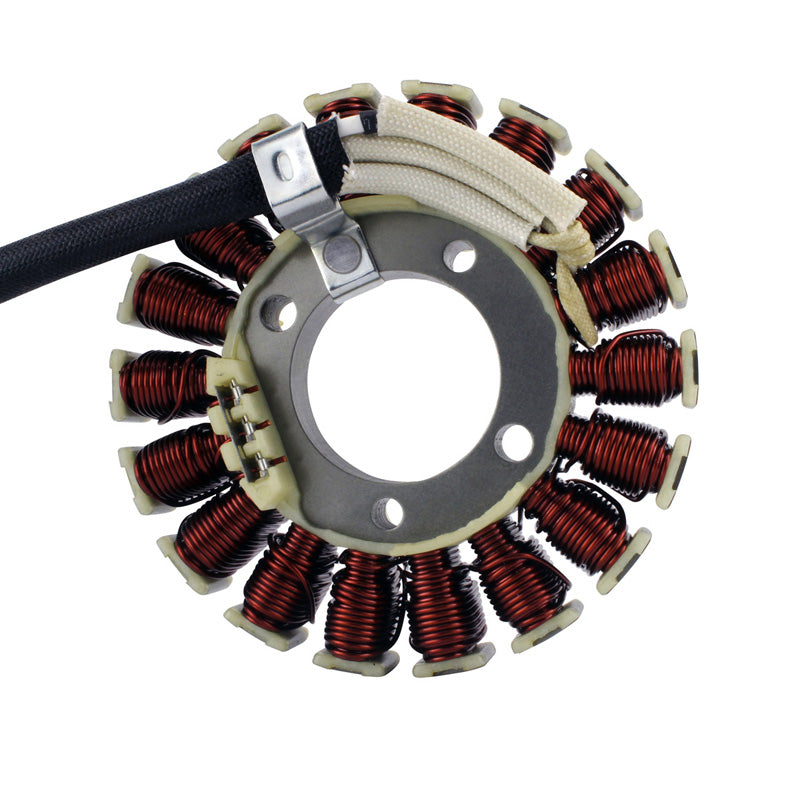

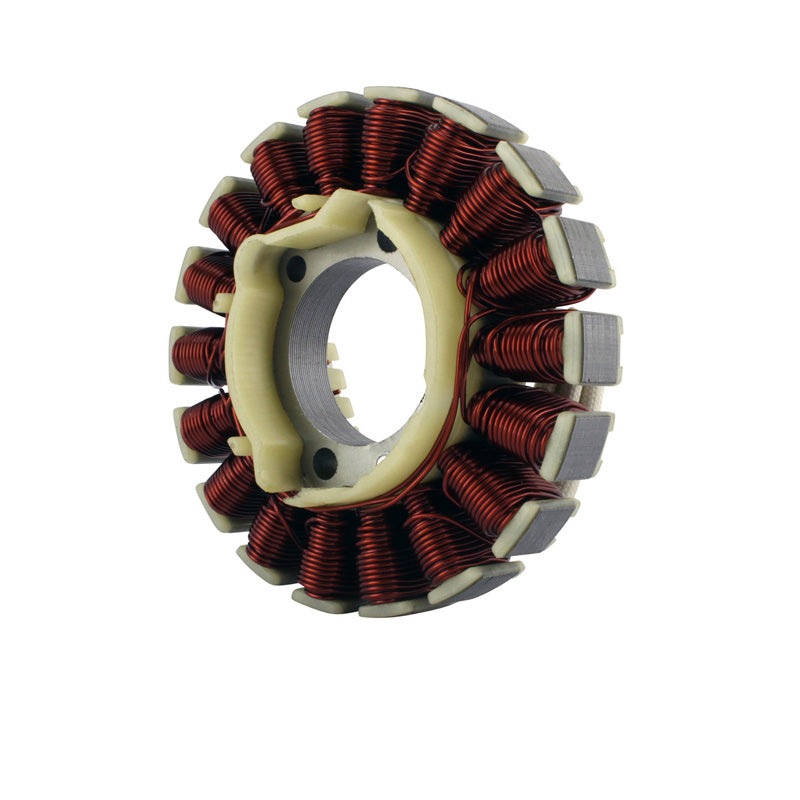

Specifications:
Dimensions:
Interior diameter: 31 mm
Exterior diameter: 88 mm

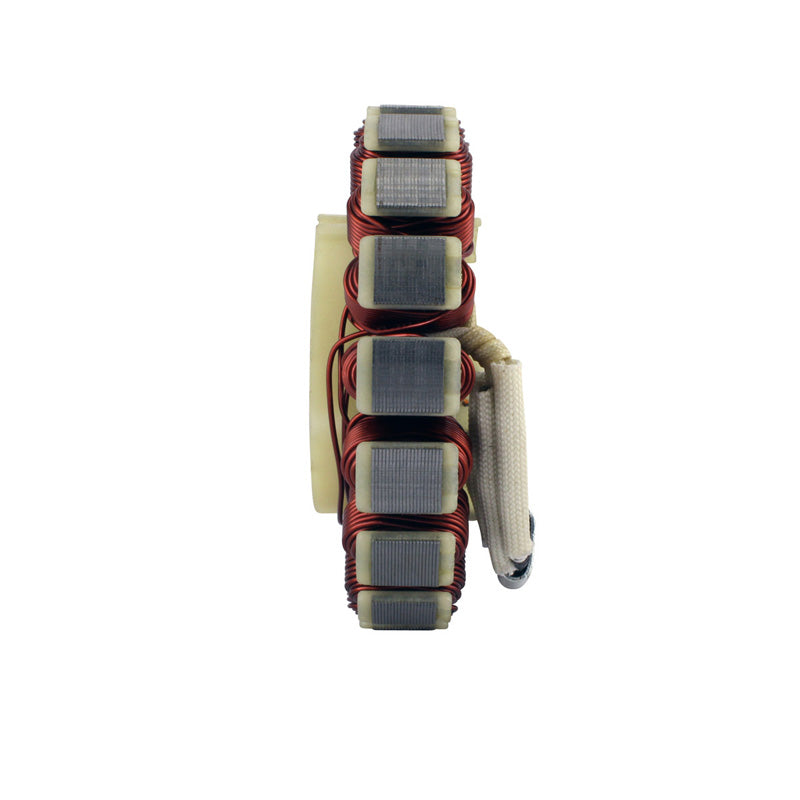

Thickness: 10 mm
Length of wires stator to grommet: 150 mm
Length of wires grommet to plug: 480 mm
Length of pickup coil's wire to grommet: 70 mm
Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Alternator: White to White = 0.4 ohms +-20%
Pickup: Grey to Dark Grey = 285 ohms +-20%
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
