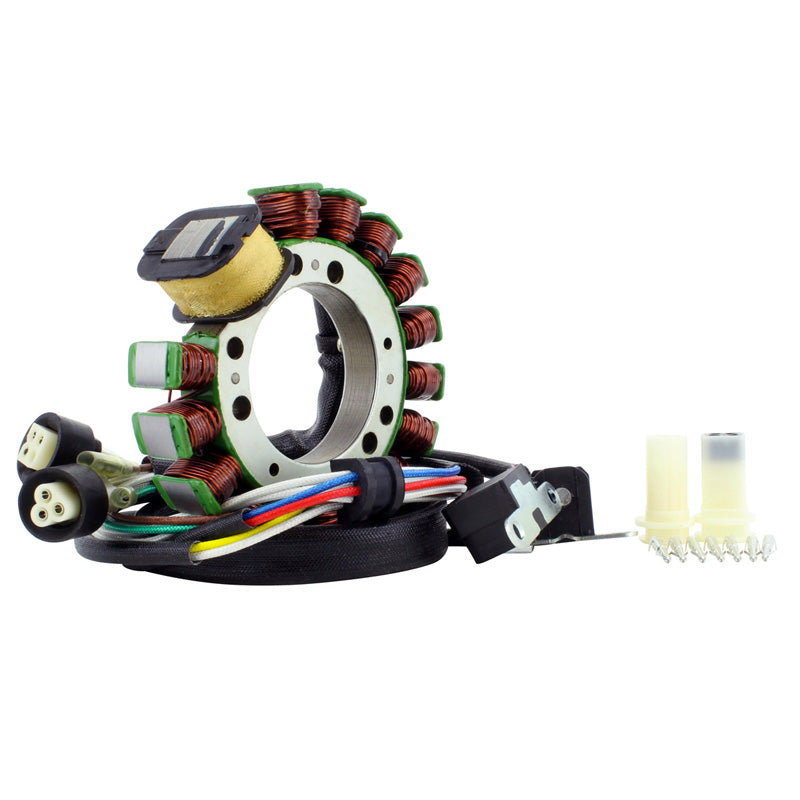

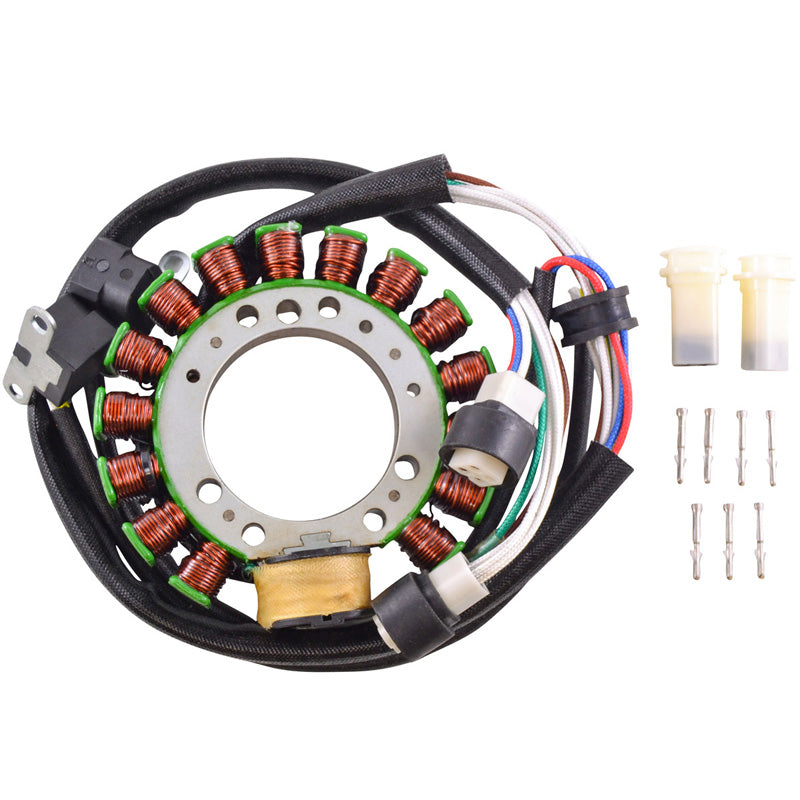

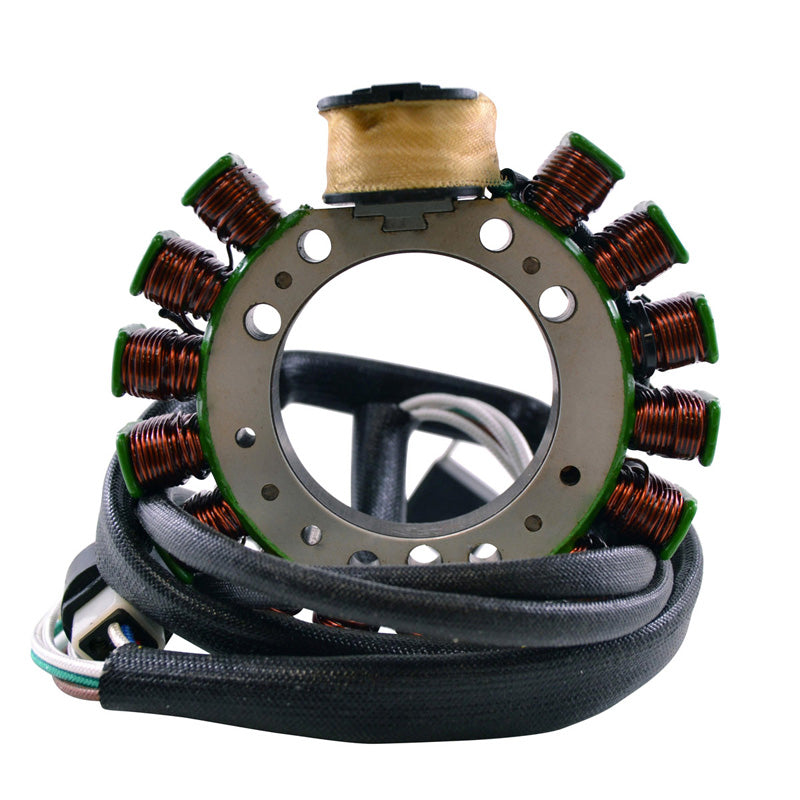

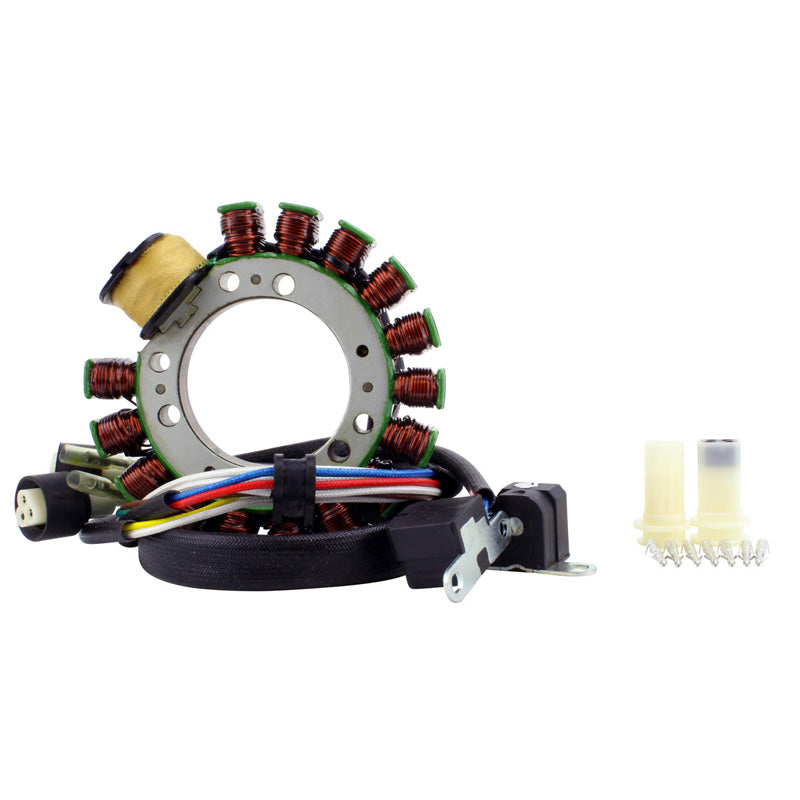

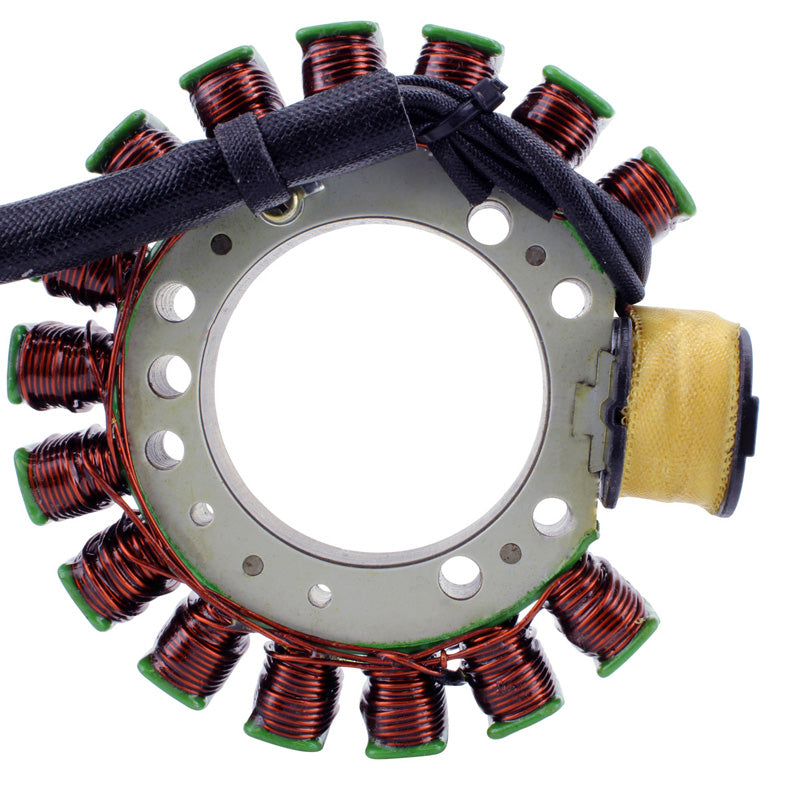

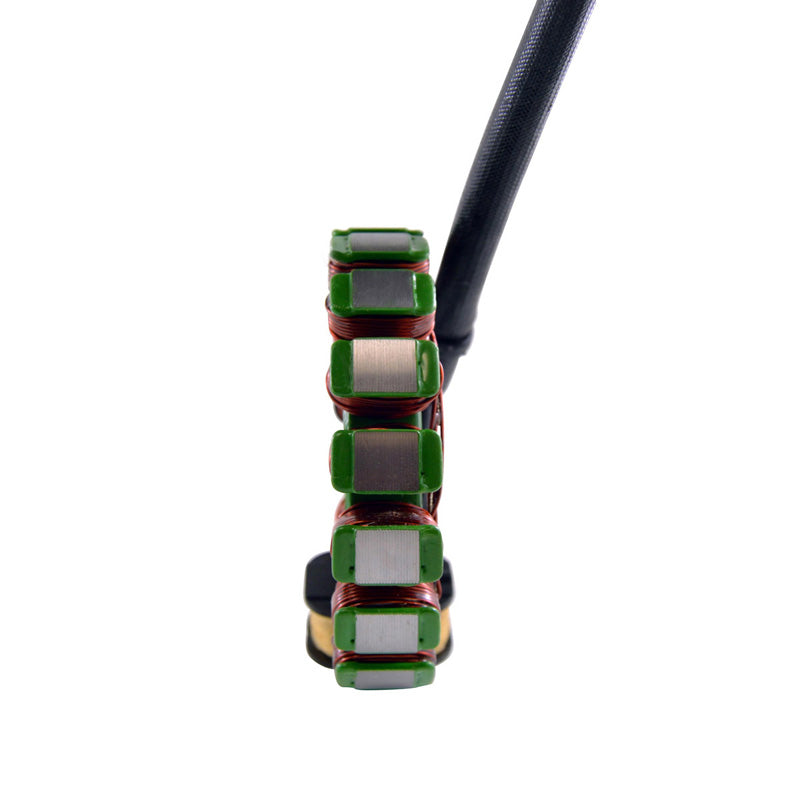

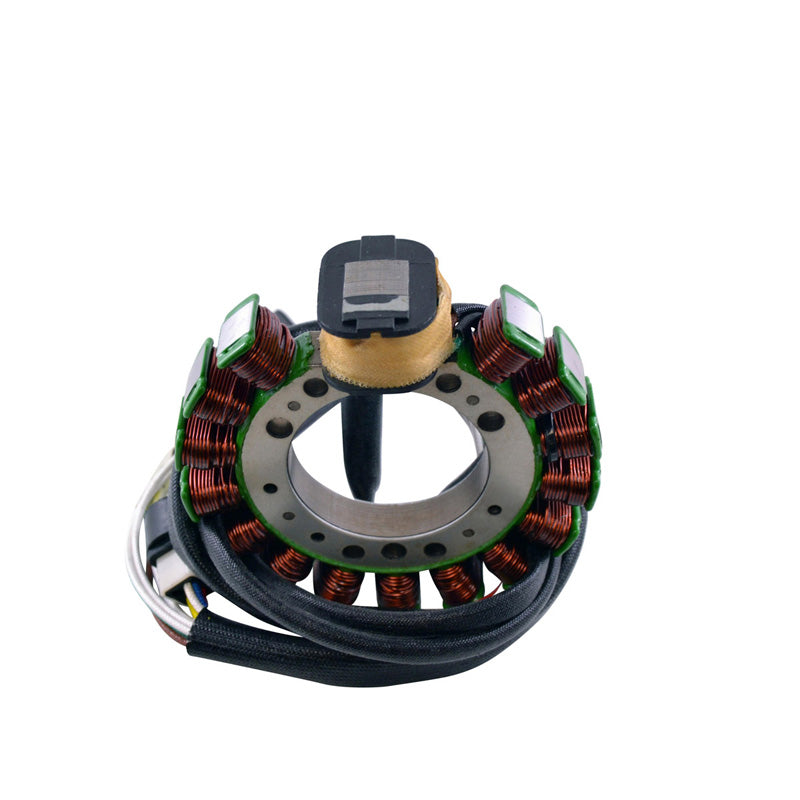

Highest grade copper windings, resistant to 200 degrees Celsius.

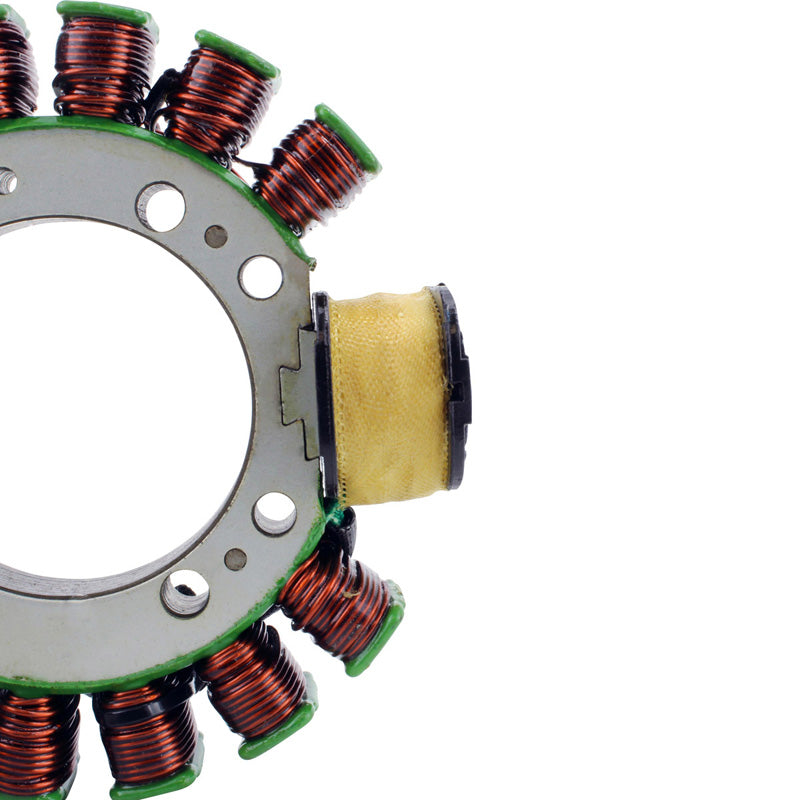

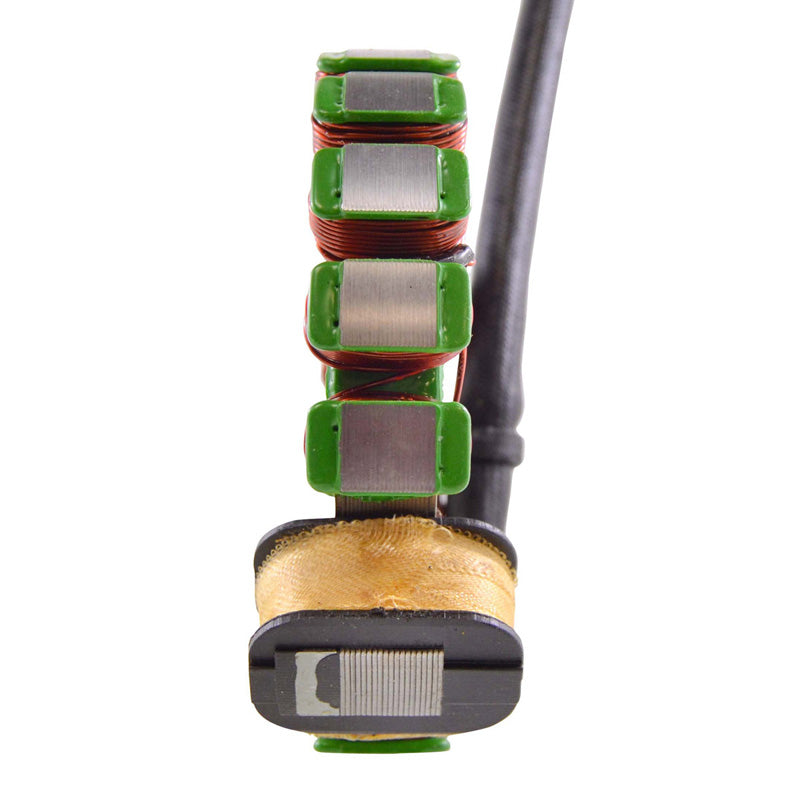

Pick up pulsar coil included

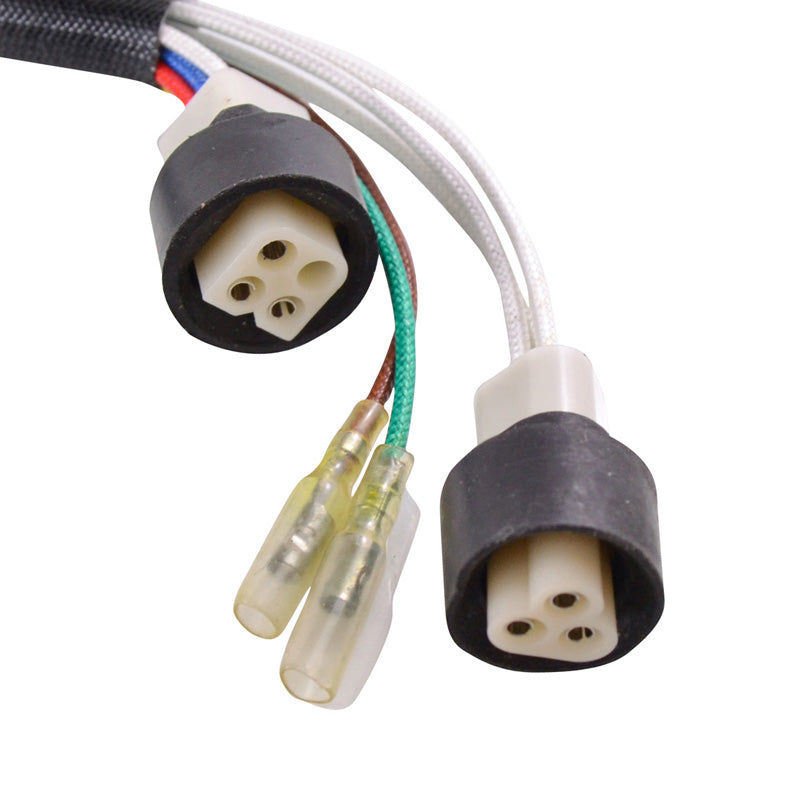

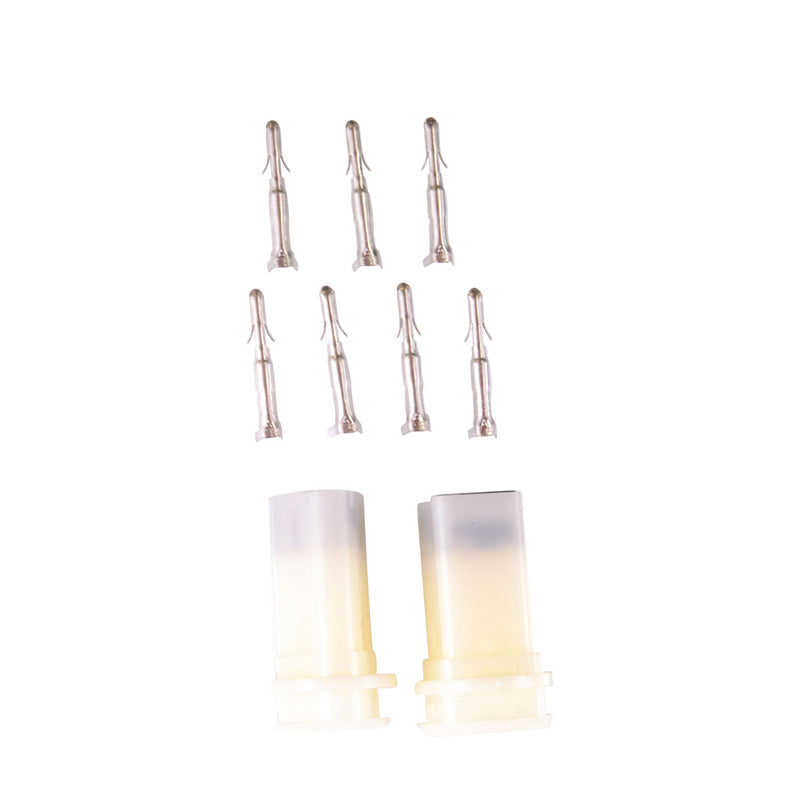

Connector included
Rubber grommet included
All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions :
Interior diameter : 52mm
Exterior diameter : 115mm
Thickness : 40mm
Length of wires stator to grommet : 300mm
Length of wires grommet to plug : 490mm
Length of pickup coil's wire to grommet : 295mm
Other specifications :
Number of wires : 9
Number of plugs : 4
Number of pins : 8
Wire to wire resistance :
Alternator : White between each White = 0.4ohms +/-20%
Pickup : Blue to Red = 215ohms +/-20%
Pickup : Yellow to White = 215ohms +/-20%
Source : Green to Brown = 300ohms +/-20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
