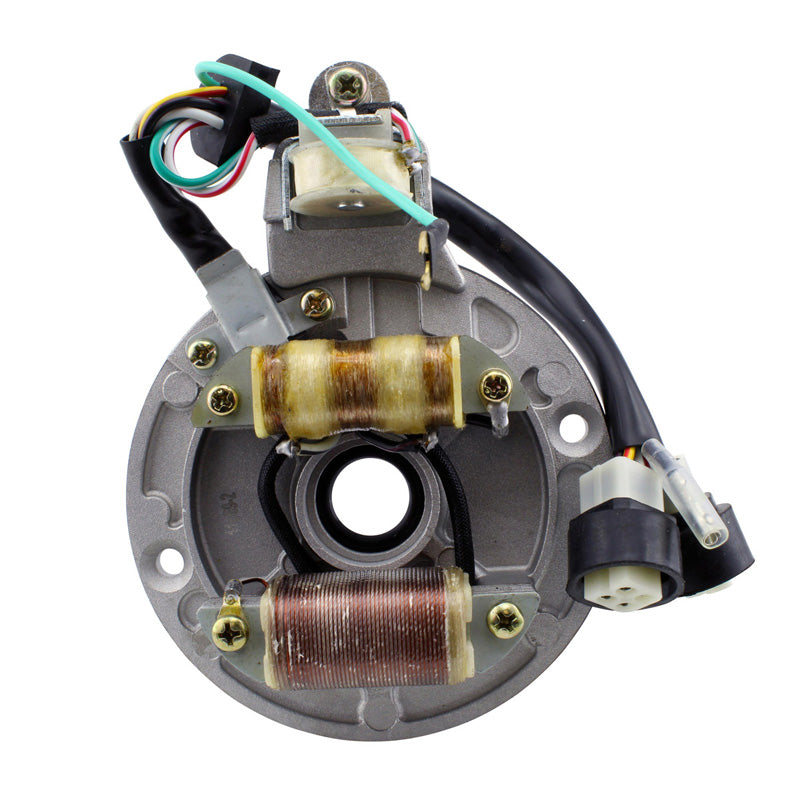

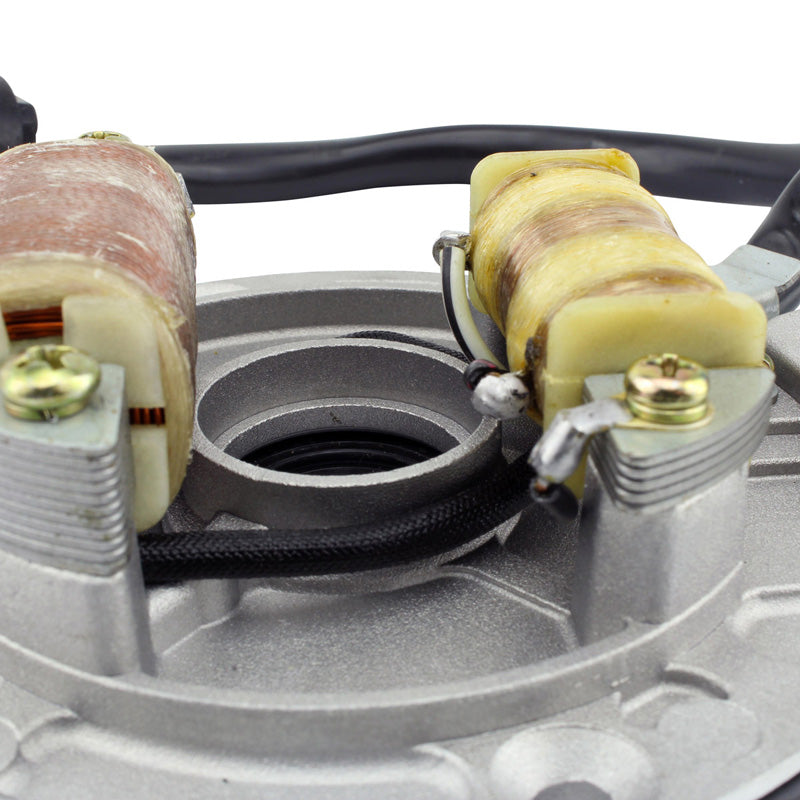

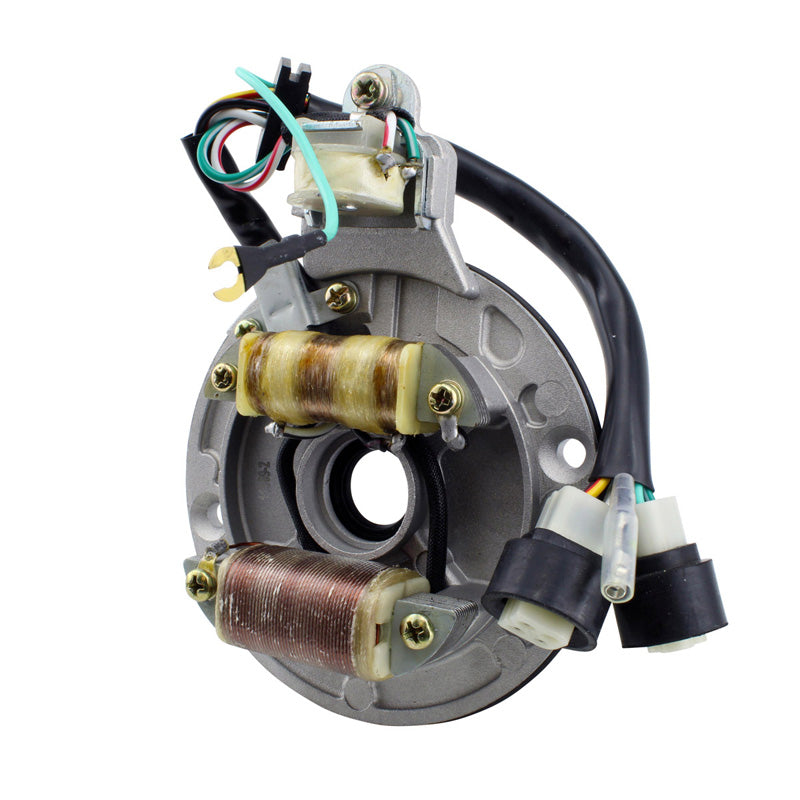

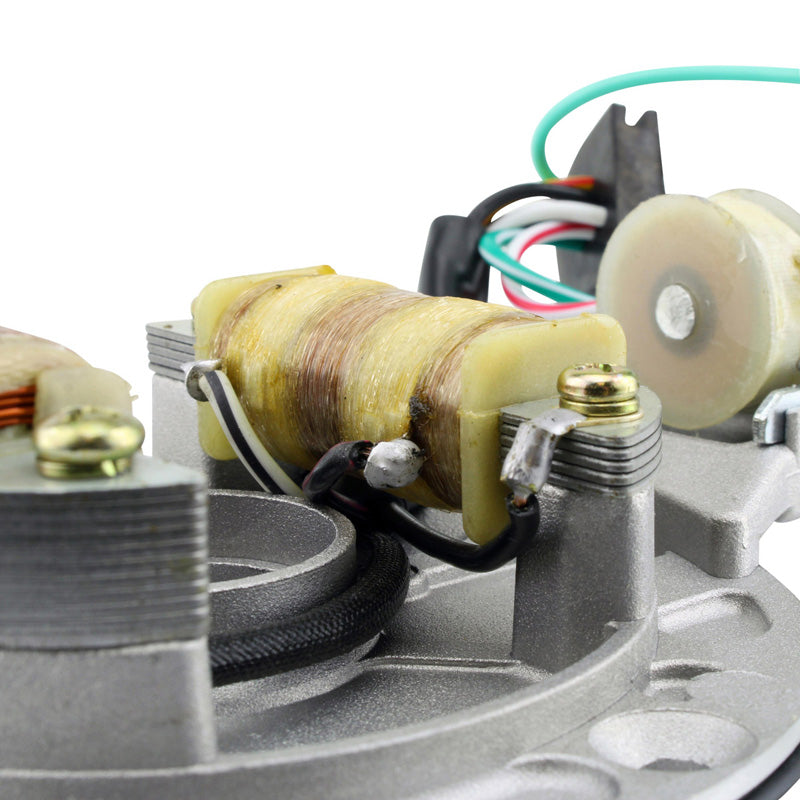

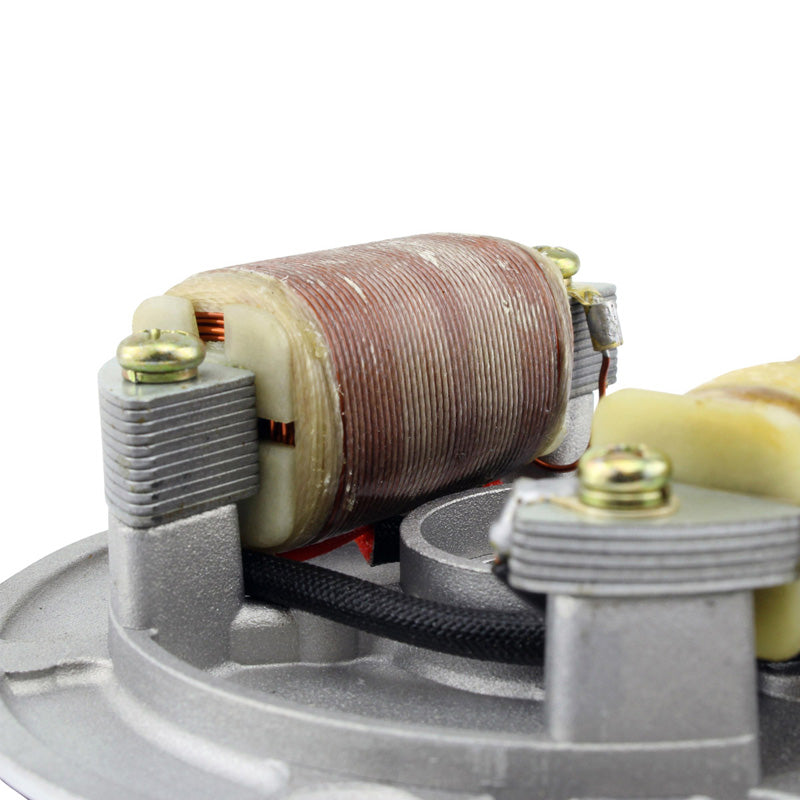

Highest grade of copper winding, resistant to 200 degrees Celsius

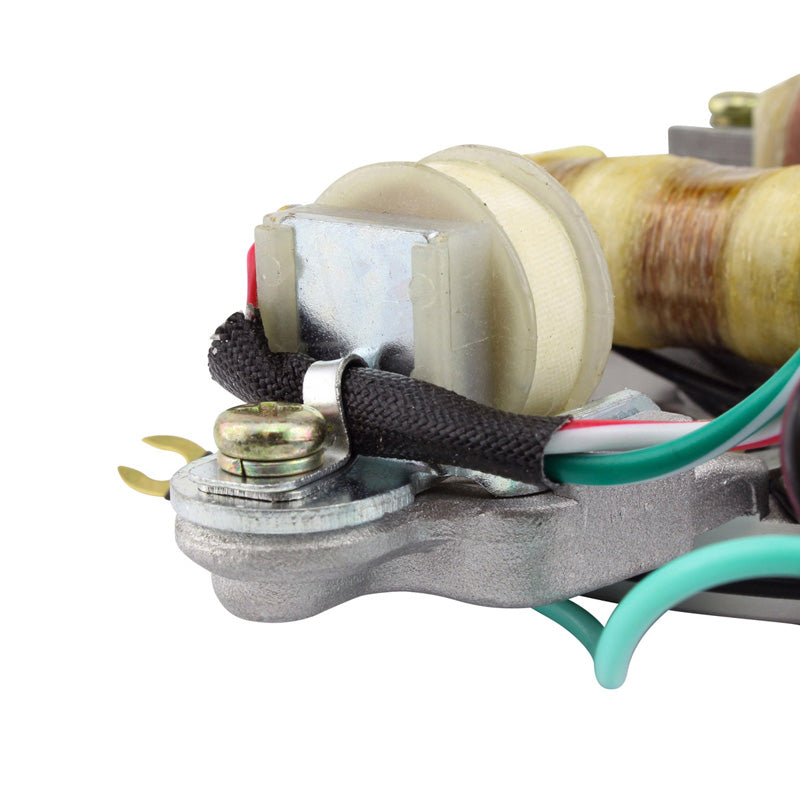

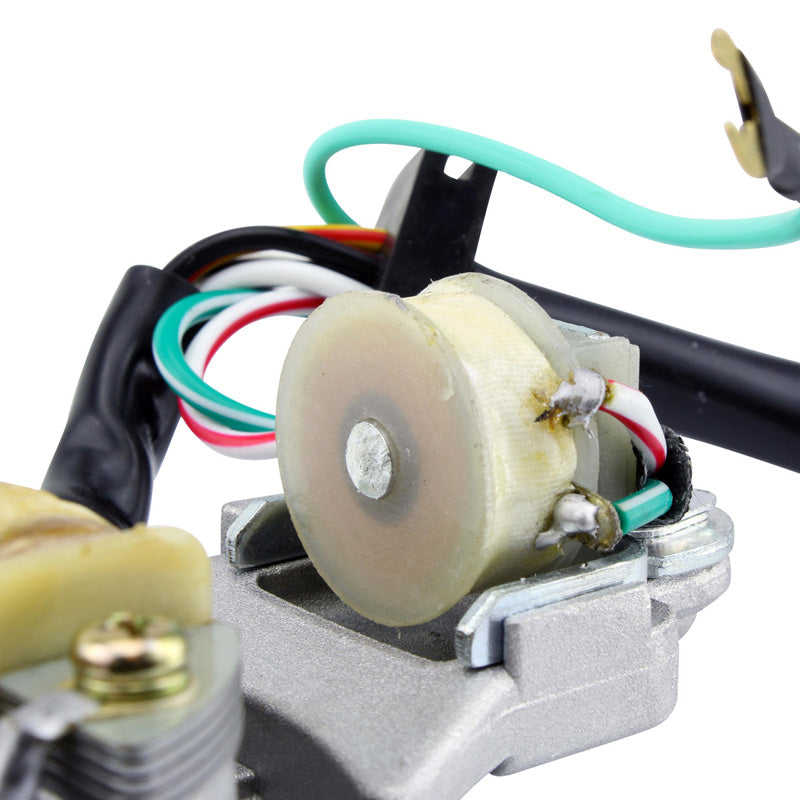

Pick up pulsar coil included

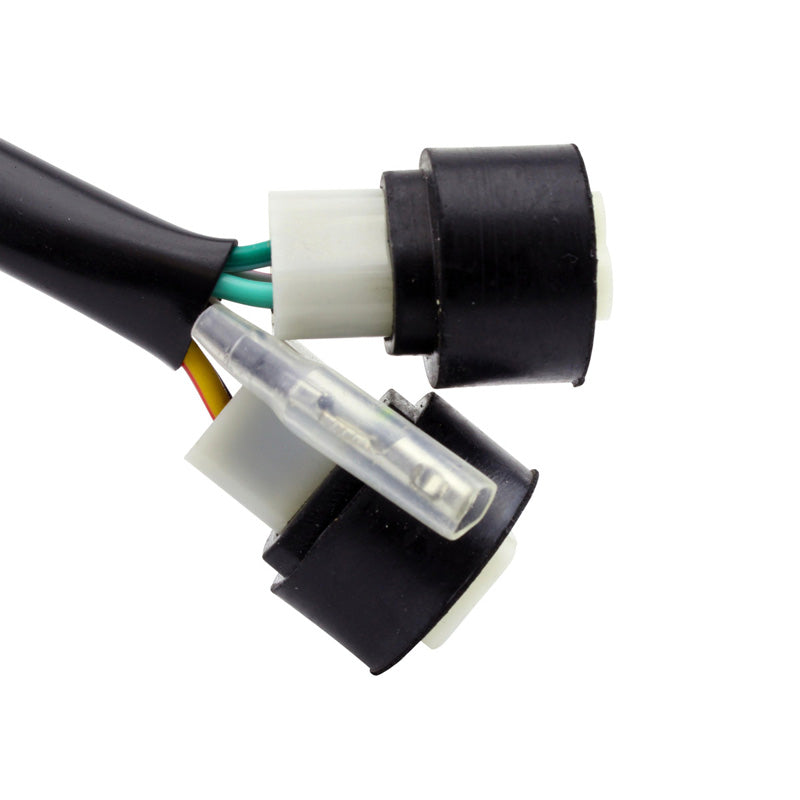

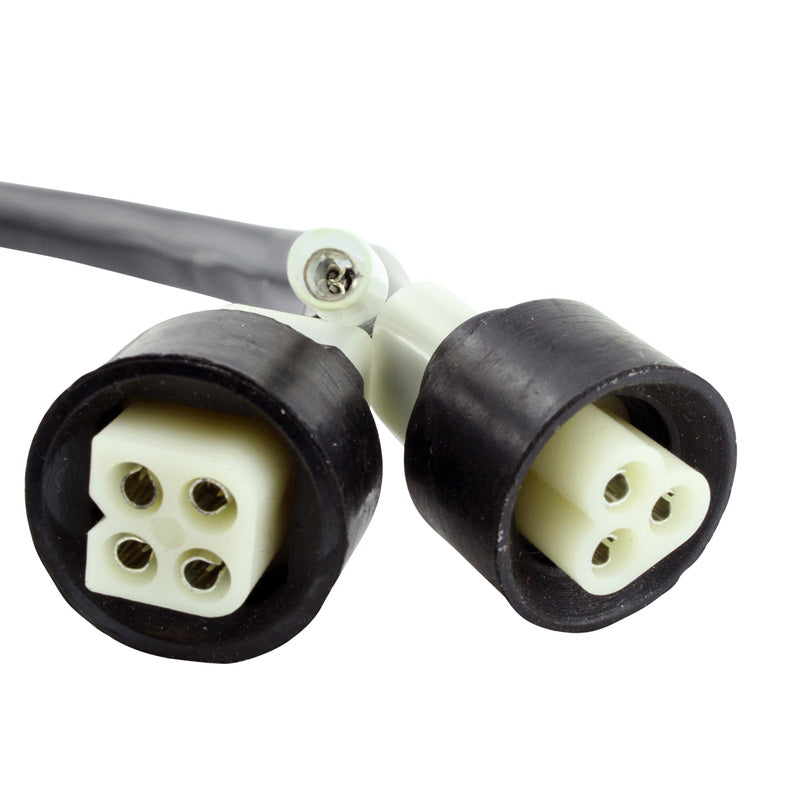

Connector included

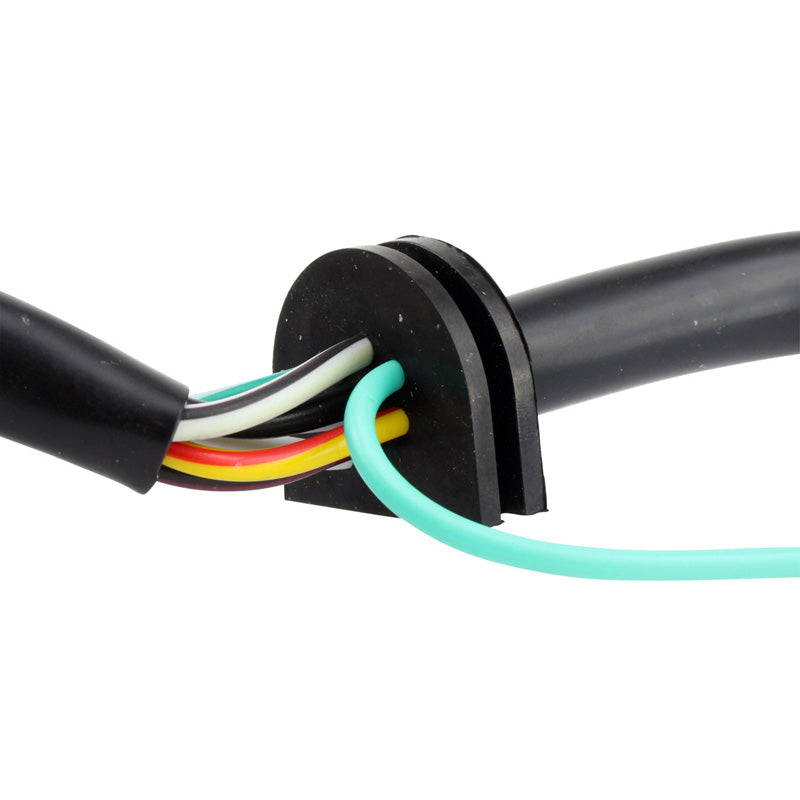

Rubber grommet included

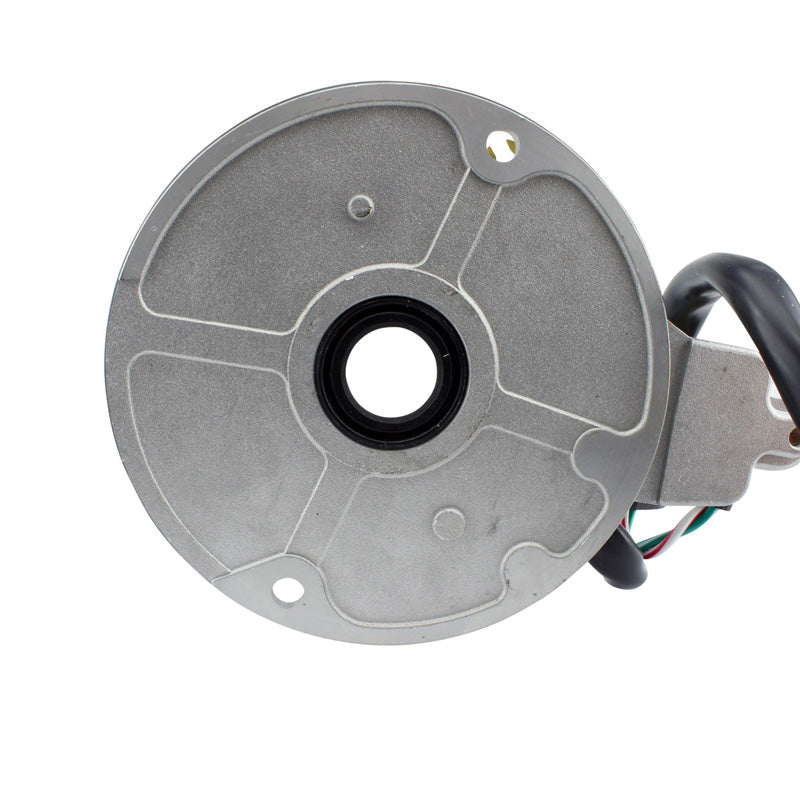

Back Plate included
All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications:
Dimensions :
Interior diameter : 19 mm
Exterior diameter : 83 mm
Thickness : 10 mm
Length of wires stator to grommet : 45 mm
Length of wires grommet to plug : 155 mm

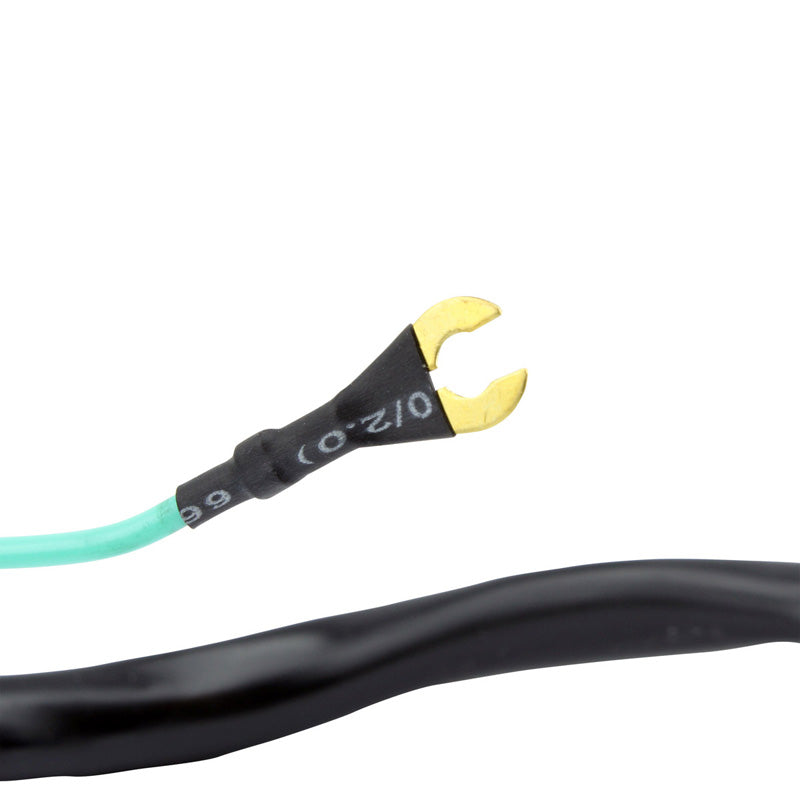

Length of pickup coil's wire to grommet : 60 mm
Other specifications :
Number of wires : 8
Number of plugs : 4
Number of pins : 9
Wire to wire resistance :
Alternator : Yellow/Red to White = 0.4 ohms +-20%
Pickup : Green/White to White/Red = 338 ohms +-20%
Source : Black/Red to White/Red = 433 ohms +-20%
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
