RMS STATOR YAM YFZ 350 BANSHEE 87-94 RM01033

RMS STATOR YAM YFZ 350 BANSHEE 87-94 RM01033

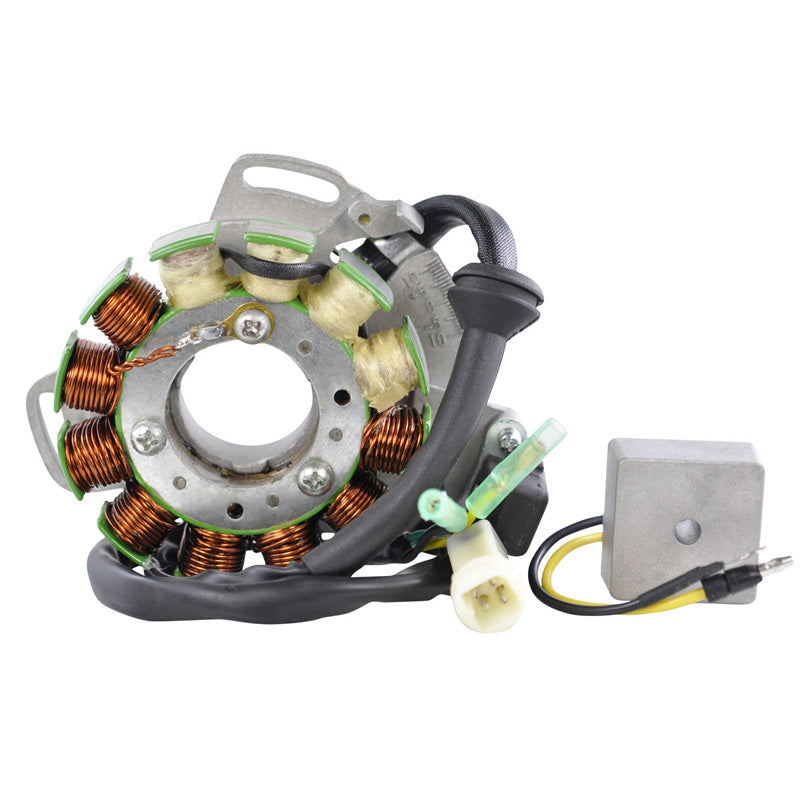

Brand new high output stator assembly 200 watts + Regulator

Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.

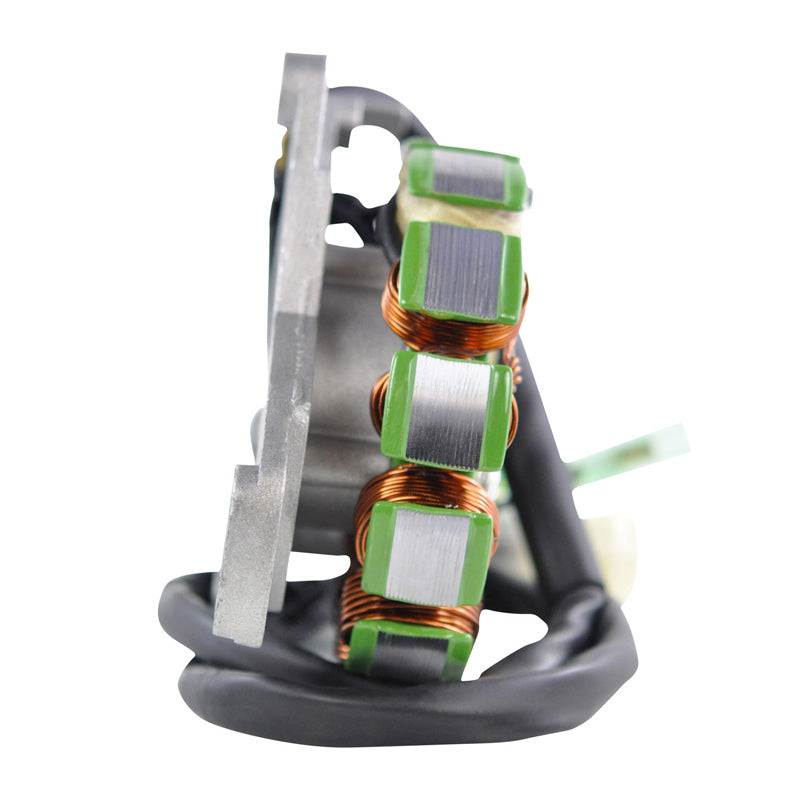

• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included

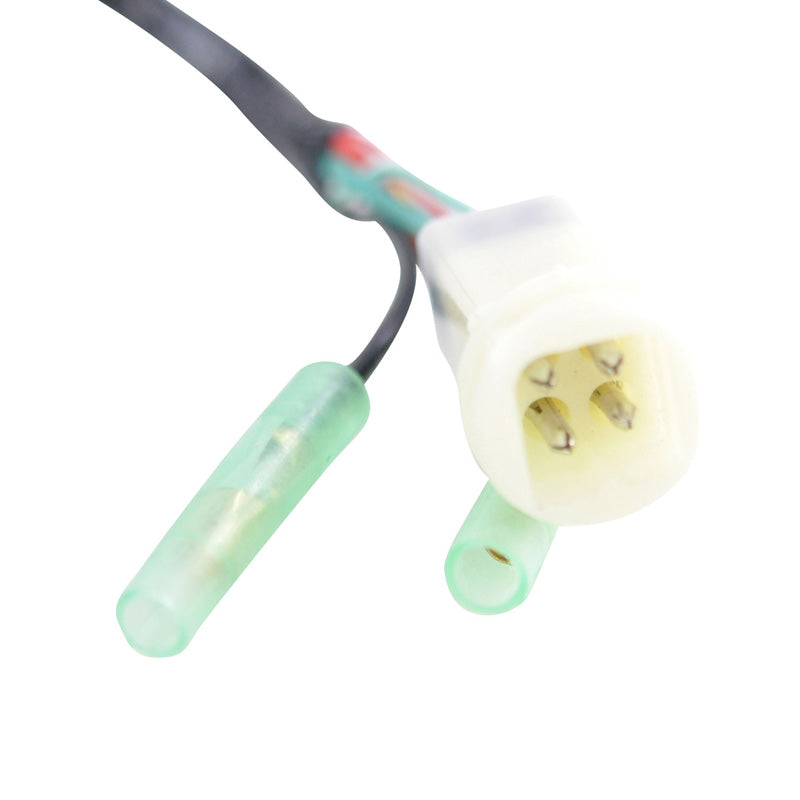

• Connector included
• Rubber grommet included

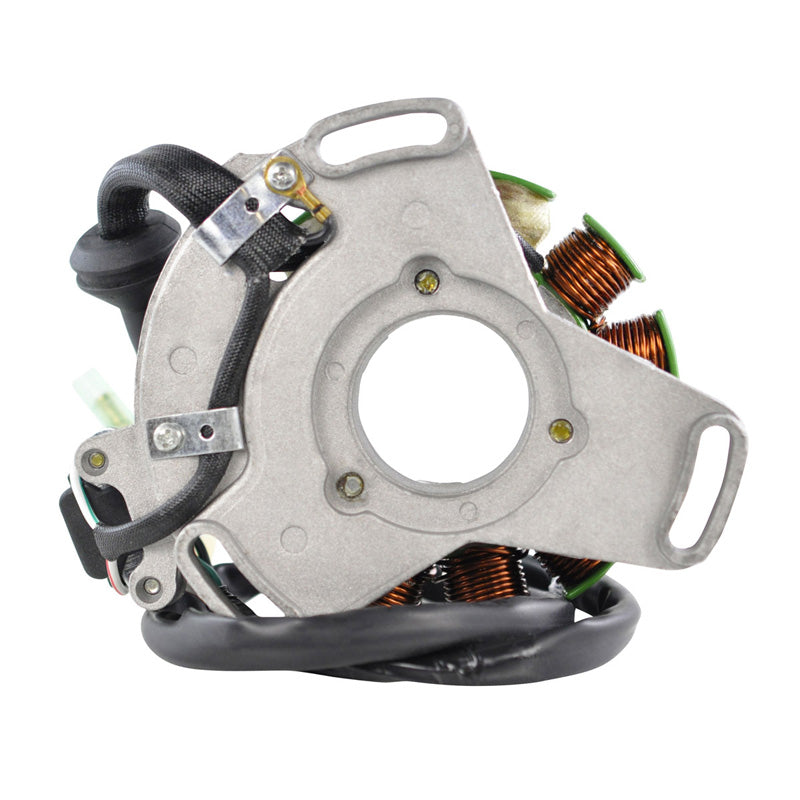

• Adjustable timing plate to advance and retard up to 10 degrees included





For a limited time we are including a FREE Tympanum AC regulator required to run the extra wattage supplied from our 200W stator.

AC Regulator





• 12 Volts regulator used by Baja winners
• For use with all standard halogen and quartz lights
• Precise voltage control, eliminates light burnout
• Reduce flickering and dimming
• Simple installation
• Works with all other OEM parts
• Rated at 225 watts

All products shipped are tested











*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.







Specifications:

Dimensions :
Interior diameter : 41 mm
Exterior diameter : 103 mm
Thickness : 14 mm
Length of wires stator to grommet : 90 mm
Length of wires grommet to plug : 380 mm
Length of pickup coil's wire to grommet : 100 mm


Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 6

Wire to wire resistance :
Alternator : Black to Yellow = 0.2 ohms +/-20%
Pickup : White/Red to White/Green = 100 ohms +/-20%
Source : Red to Green = 15 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

There are more than one possible stator, please compare your part with our picture.
