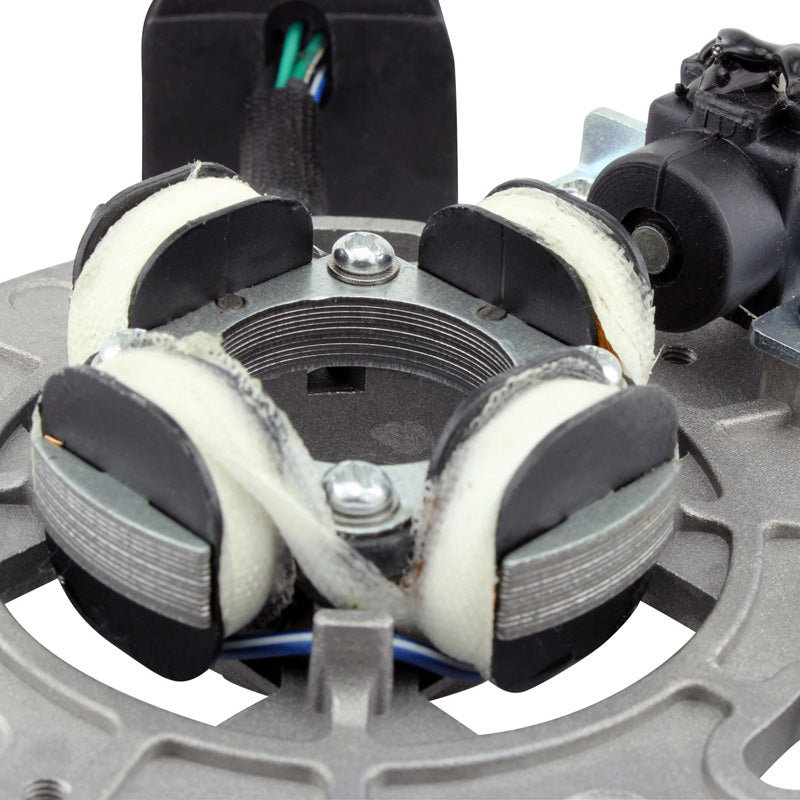

Highest grade of copper winding, resistant to 200 degrees Celsius

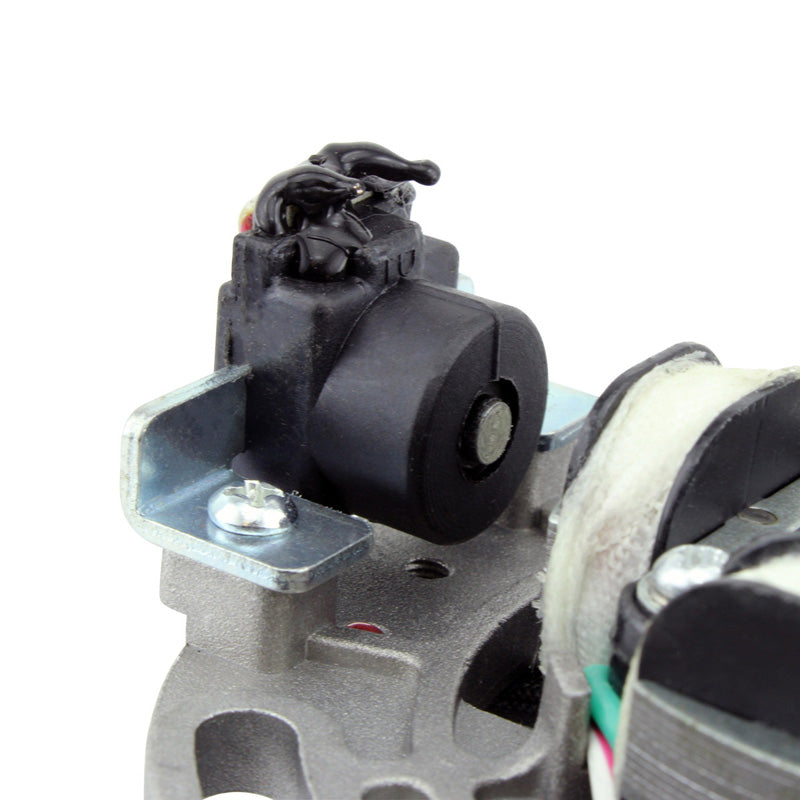

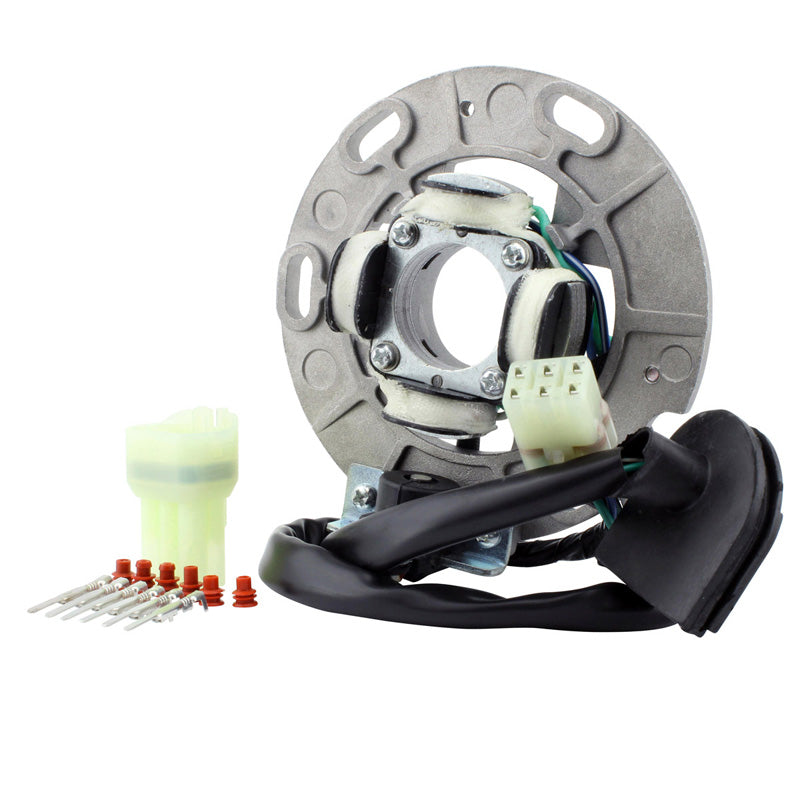

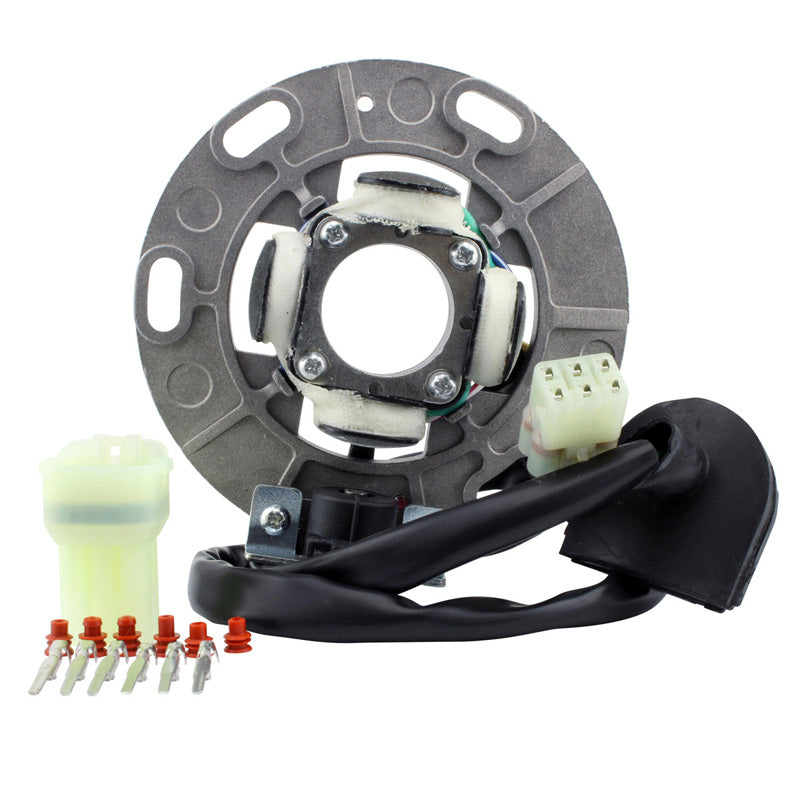

Pick up pulsar coil included

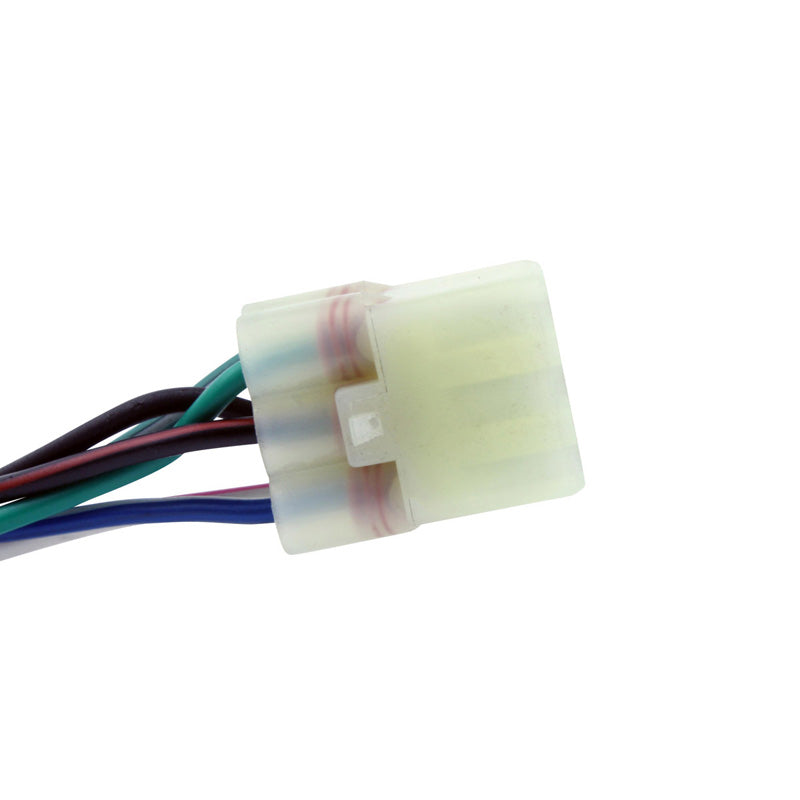

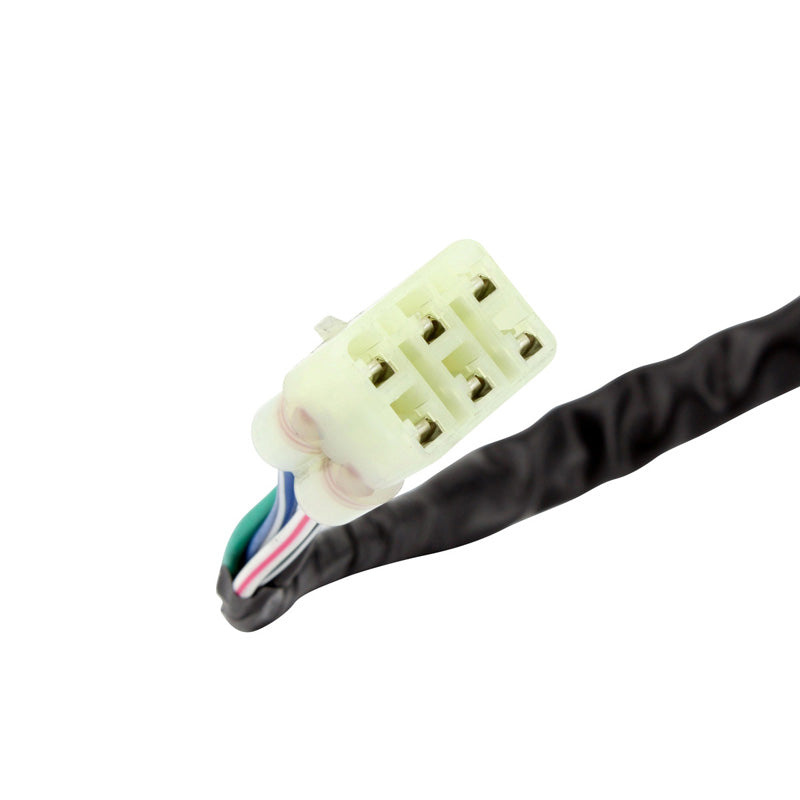

Connectors included

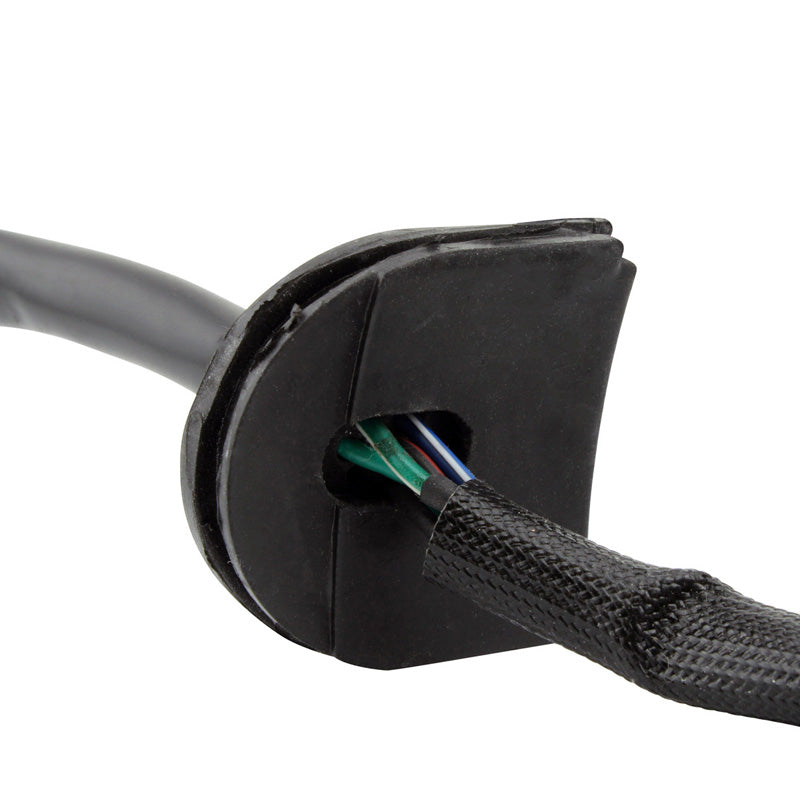

Rubber grommet included

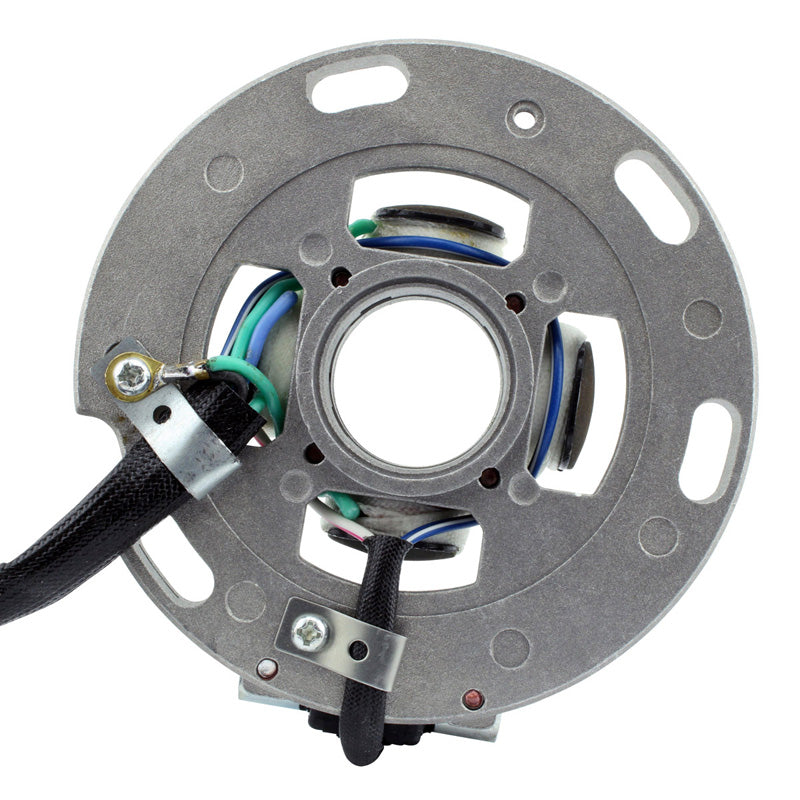

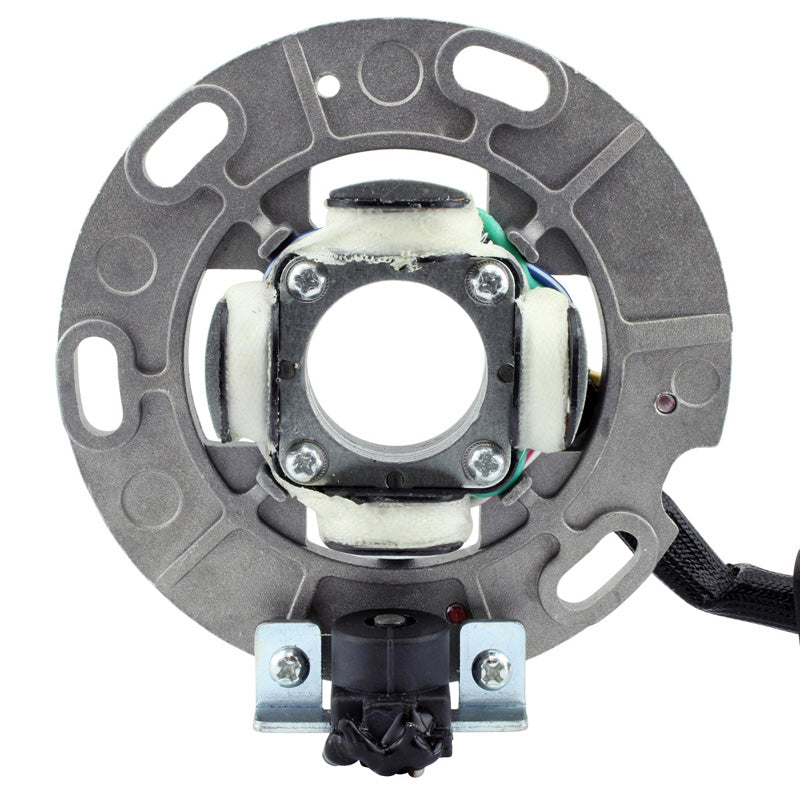

Back Plate included
All products shipped are tested

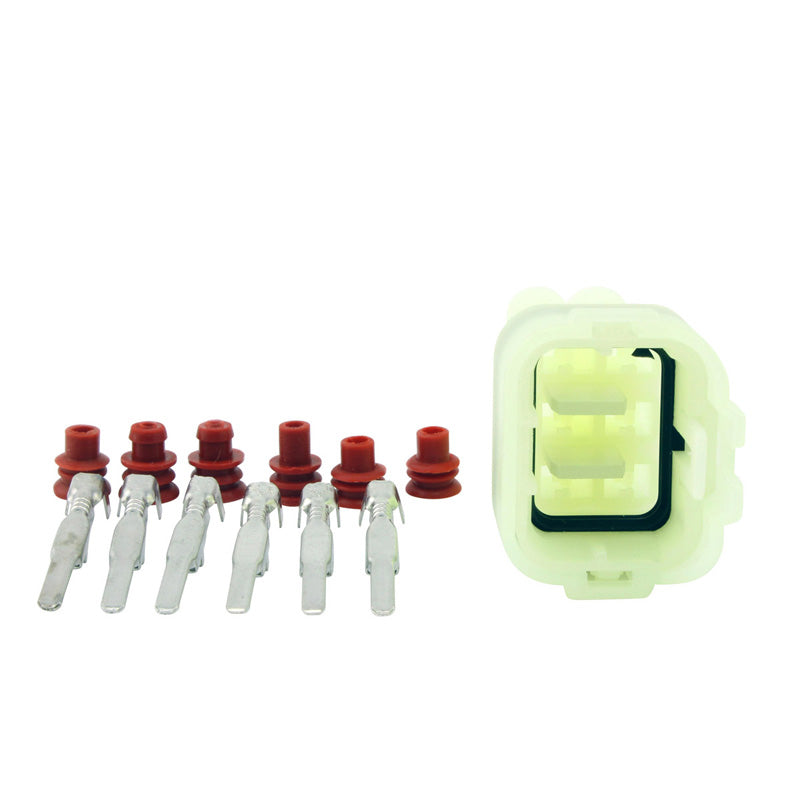

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications:
Dimensions :
Interior diameter : 28 mm
Exterior diameter : 59.30 mm
Thickness : 33 mm
Length of wires stator to grommet : 32 mm
Length of wires grommet to plug : 320 mm
Other specifications :
Number of wires : 6
Number of plugs : 1
Number of pins : 6
Number of poles : 4
Pickup : White/Blue to White/Red = 285 ohms +-20%
Source #1 : Green/White to Green = 54 ohms +-20%
Source #2 : Black/Red to Black = 875 ohms +-20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
