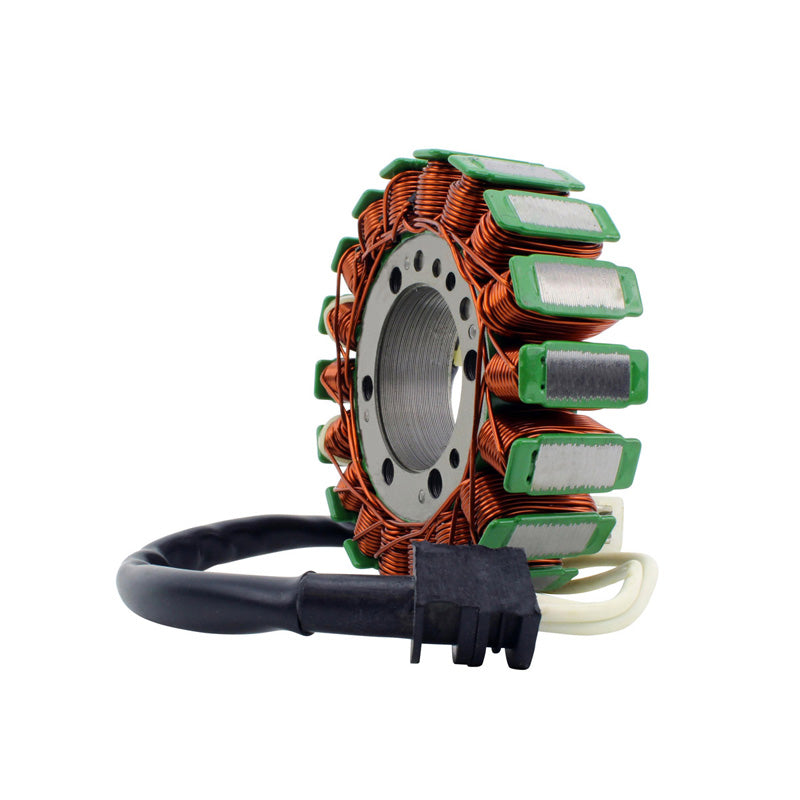

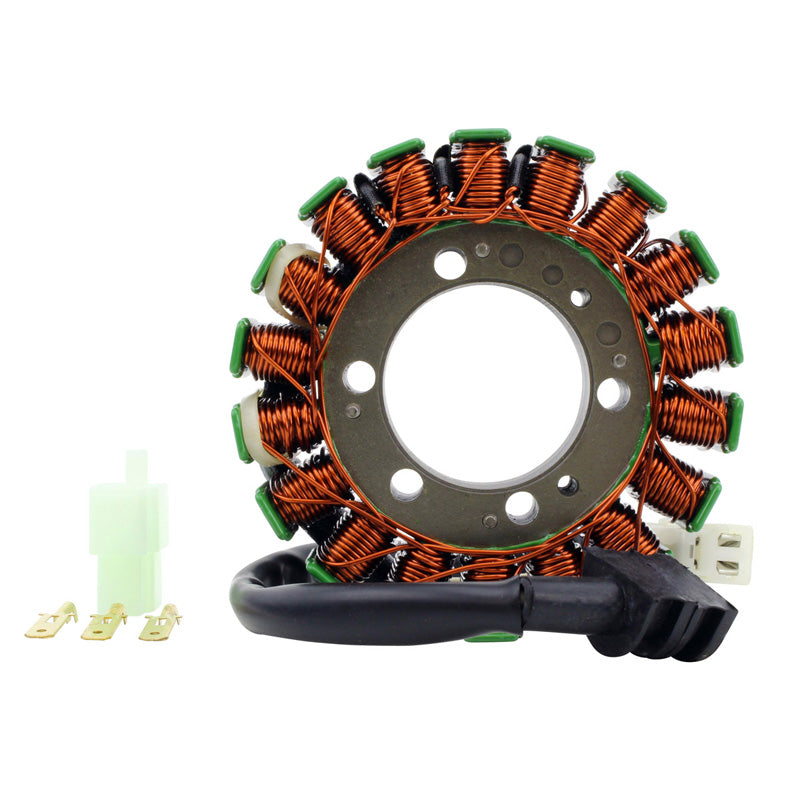

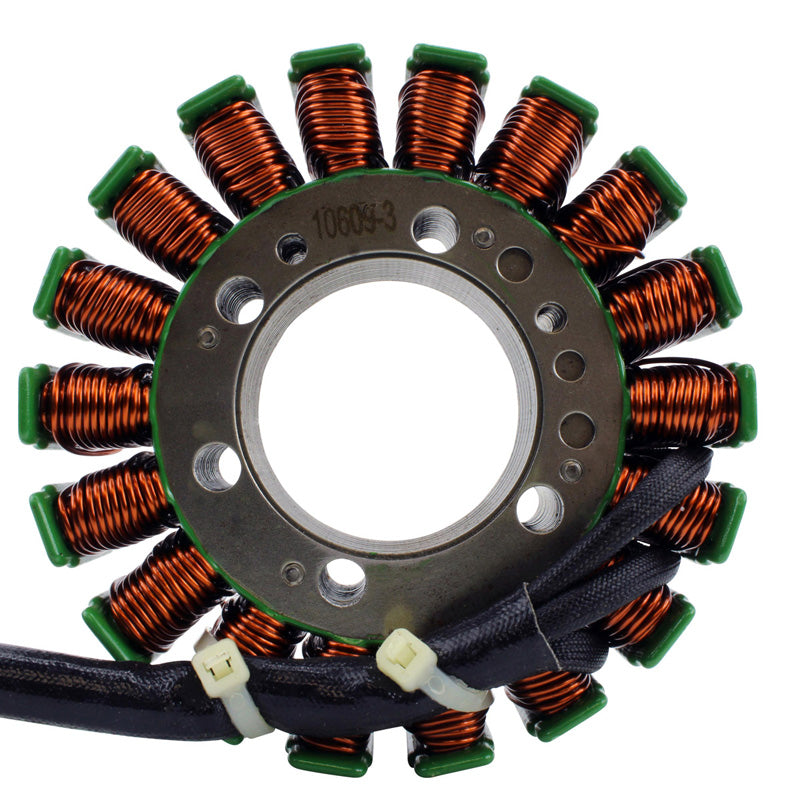

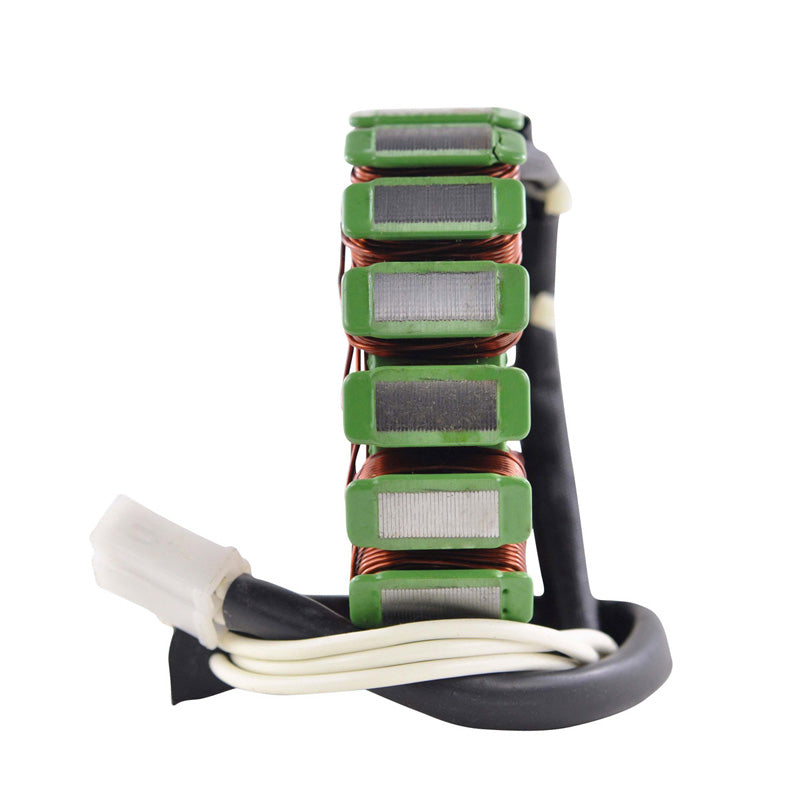

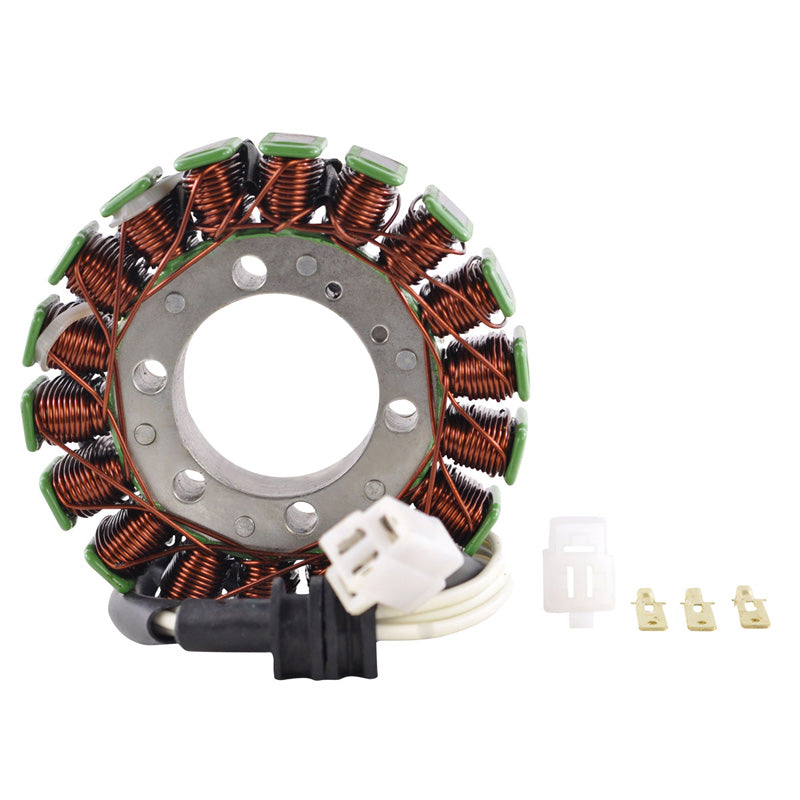

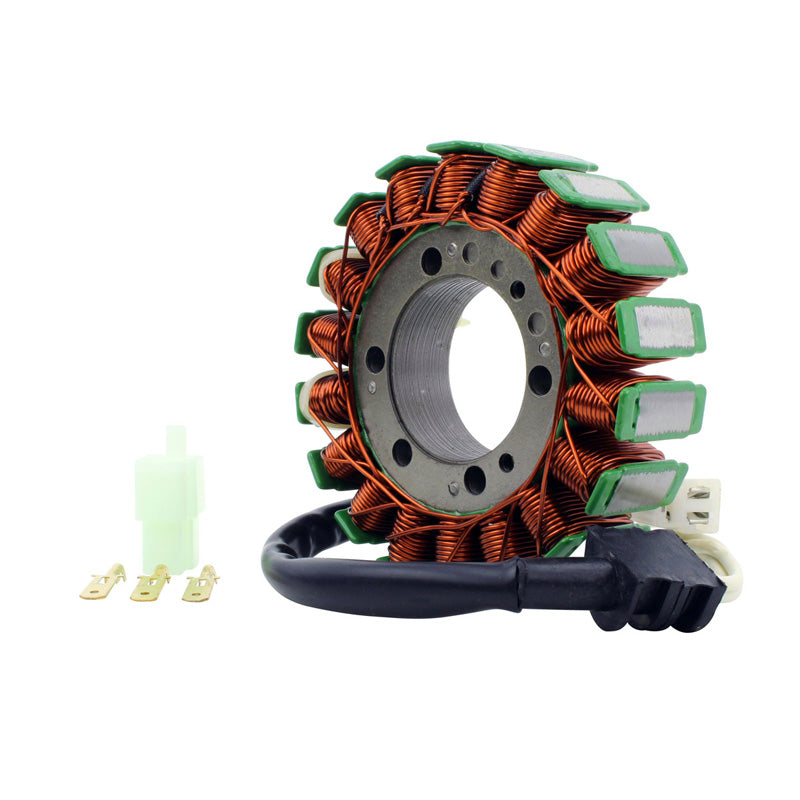

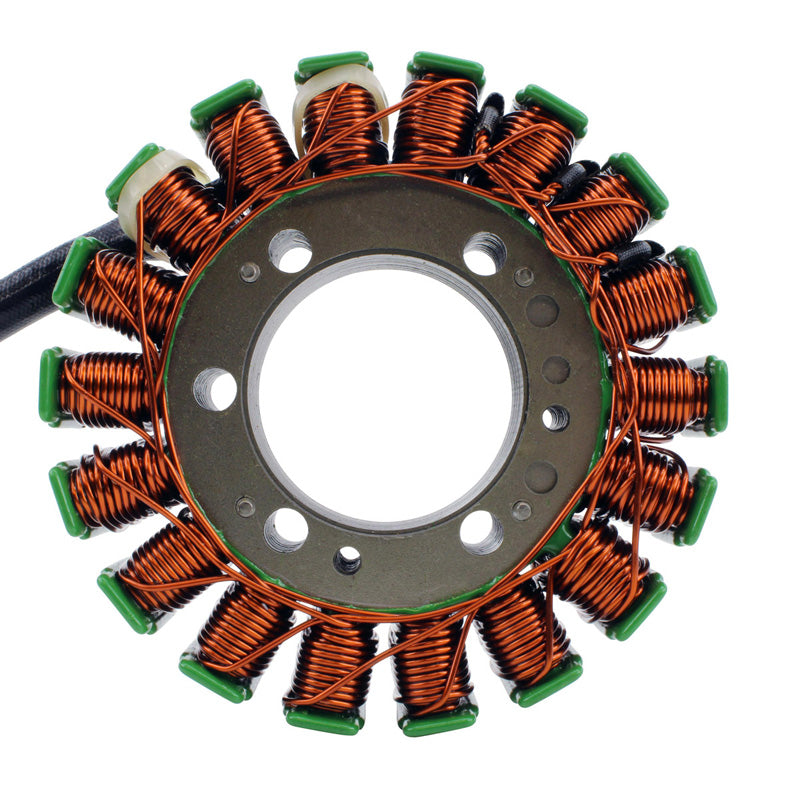

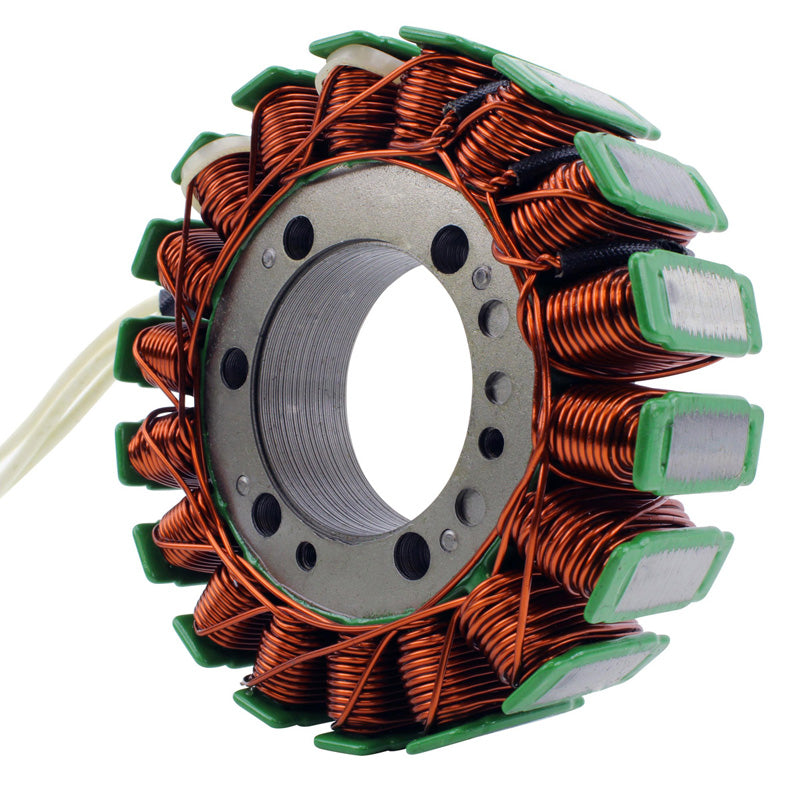

Highest grade copper windings, resistant to 200 degrees Celsius.

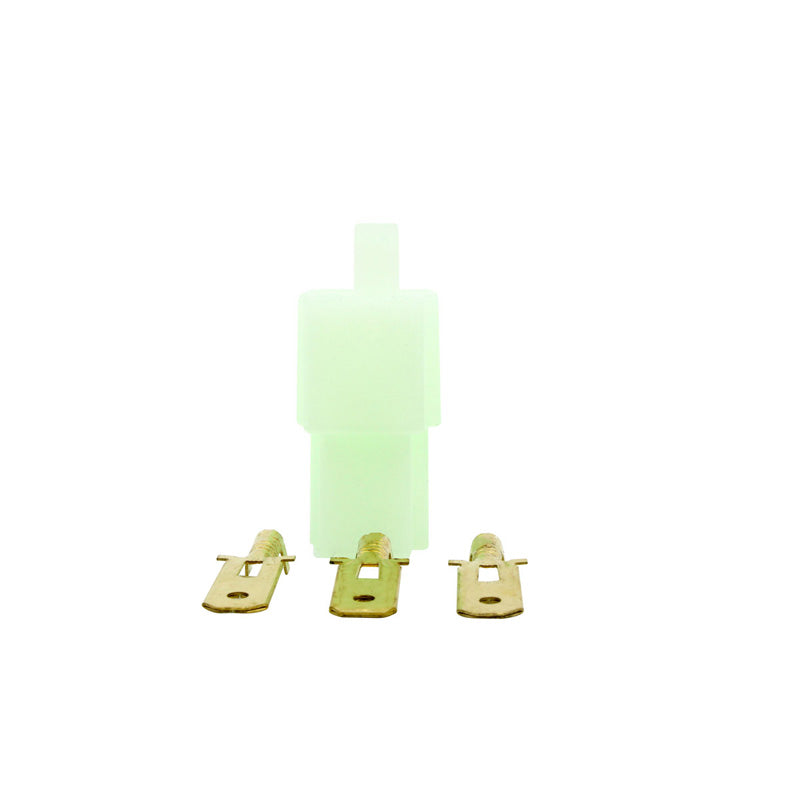

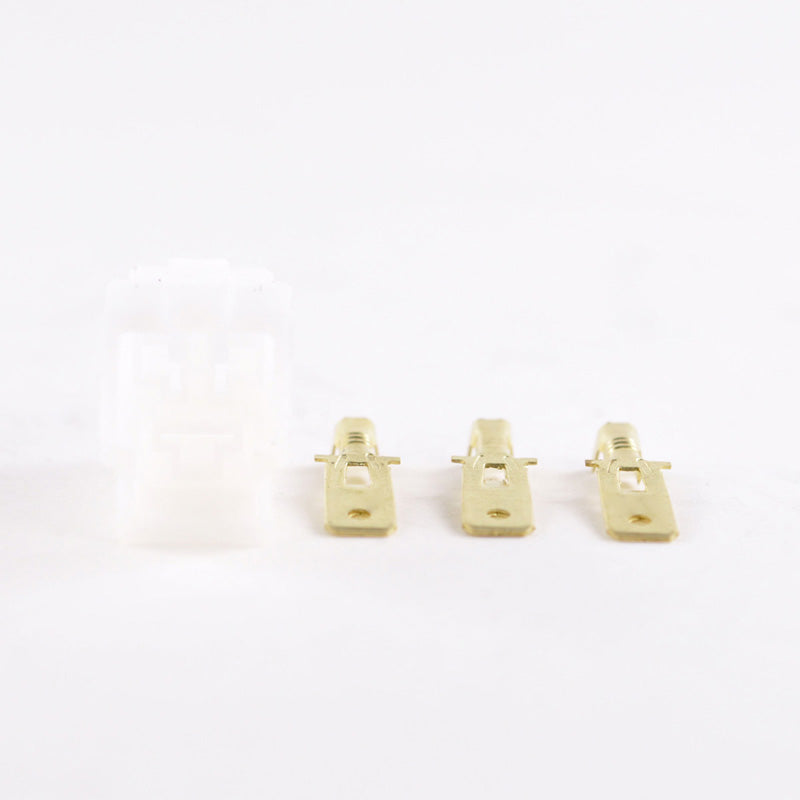

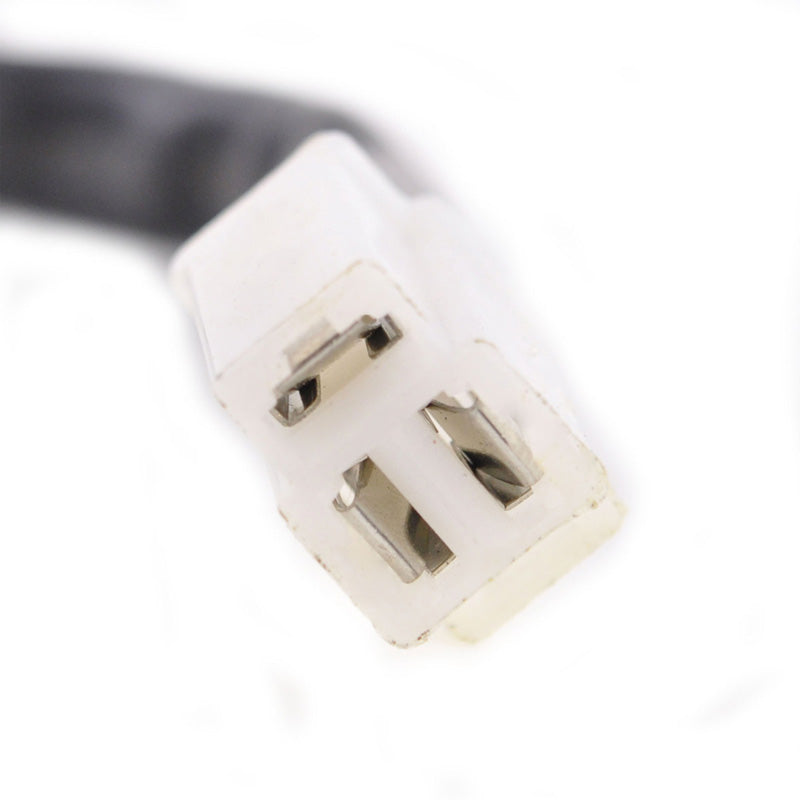

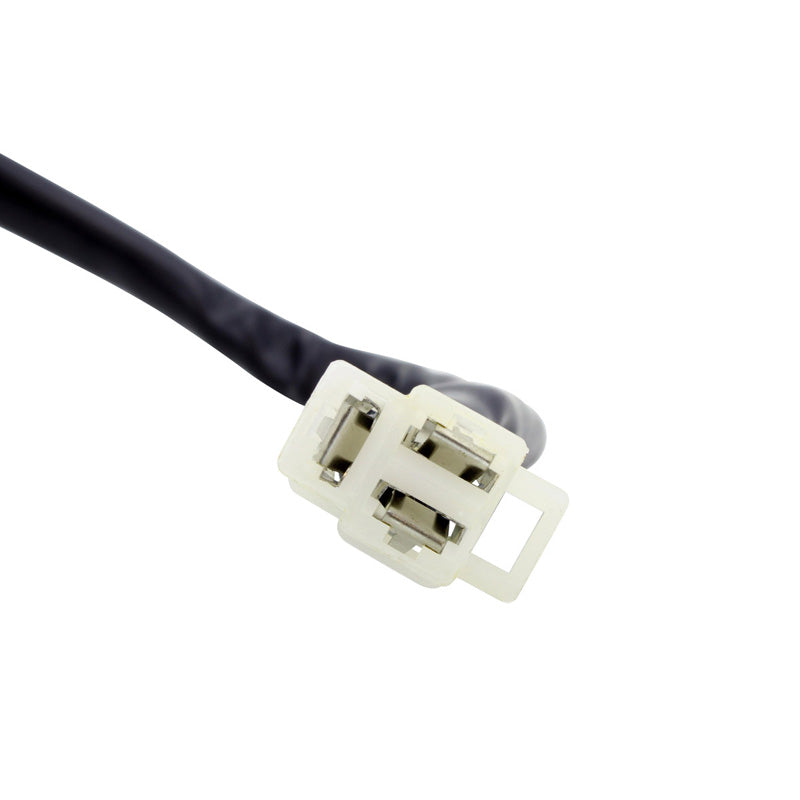

Connector included
Rubber grommet included
All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions :
Interior diameter : 42mm
Exterior diameter : 104mm
Thickness : 30mm
Length of wires stator to grommet : 130mm
Length of wires grommet to plug : 335mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : Black between each Black = 0.4ohms +/-20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
