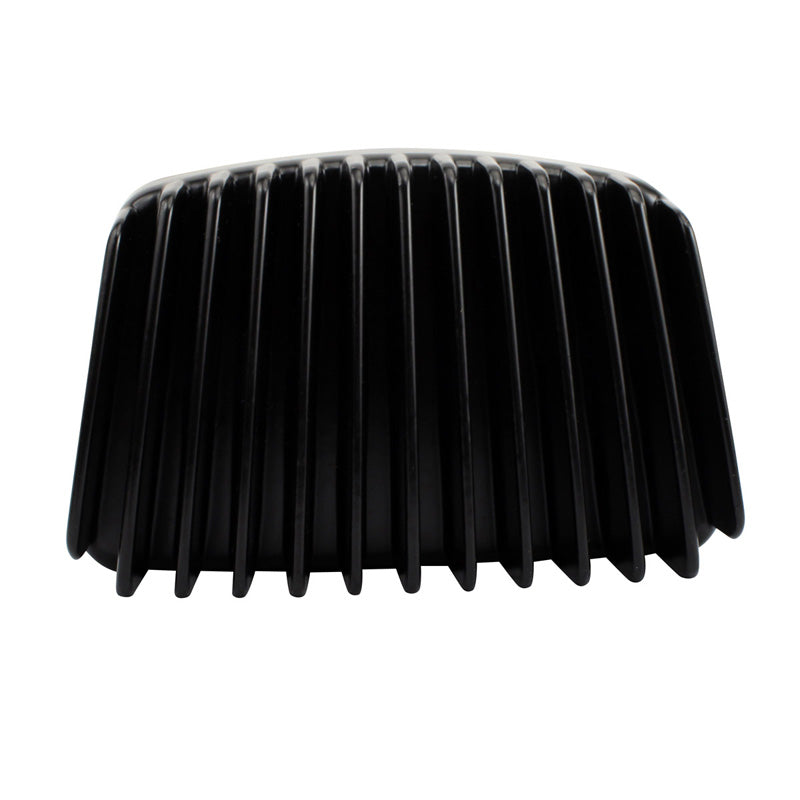

RMS VOLTAGE REGULATOR HARLEY TOURING 2017-25 RMS020-108794

Brand new aftermarket Voltage Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• No assembly required
• Higher grade of electric components
• The quality exceeds the OEM equipment
• All products shipped are tested

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Instructions:

Before installing your new Voltage Regulator Rectifier:

• Check the AC output of the stator
• Replace any burned or corroded connectors on stator and regulator rectifier
• Check and repair any melted wiring
• Use hi-temp dielectric grease on all connectors

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Specifications:

Dimensions:
Width: 94 mm
Length: 149 mm
Height: 49 mm 83 mm
Distance between fixation holes center to center: 132 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20 °C to 85 °C

Warning:

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
