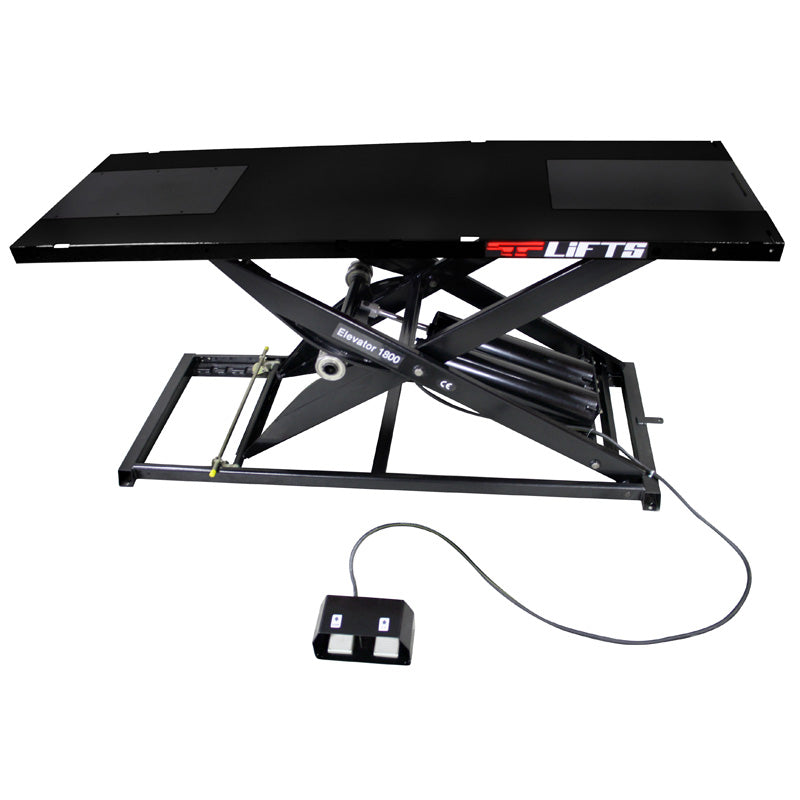

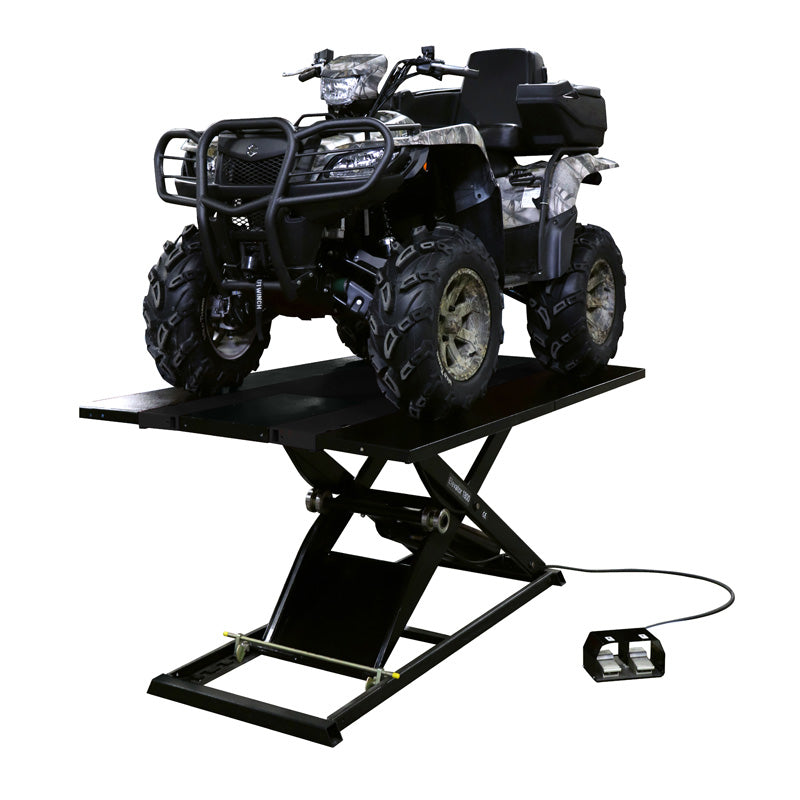

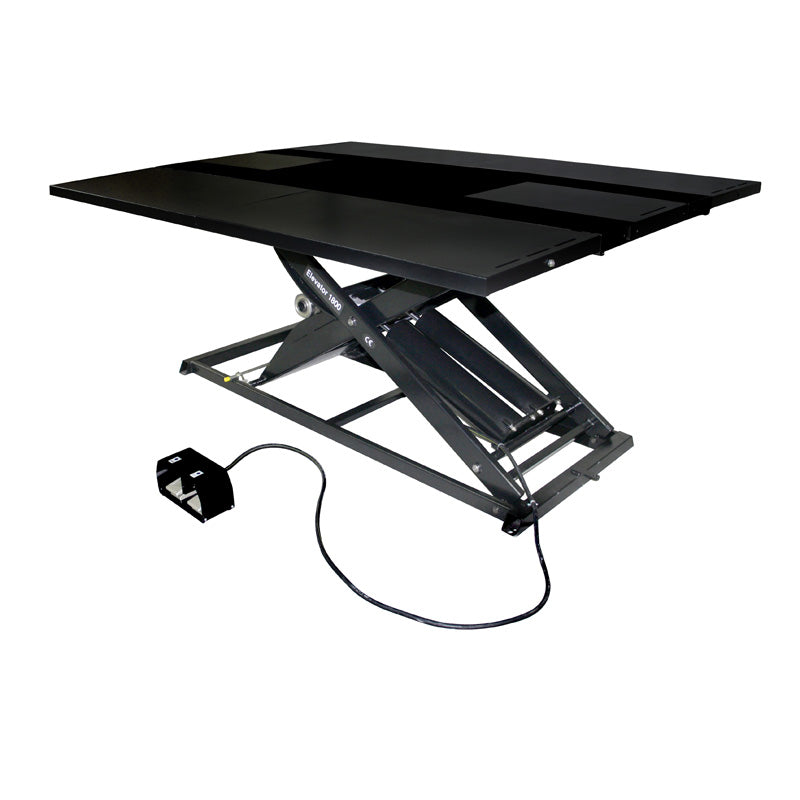

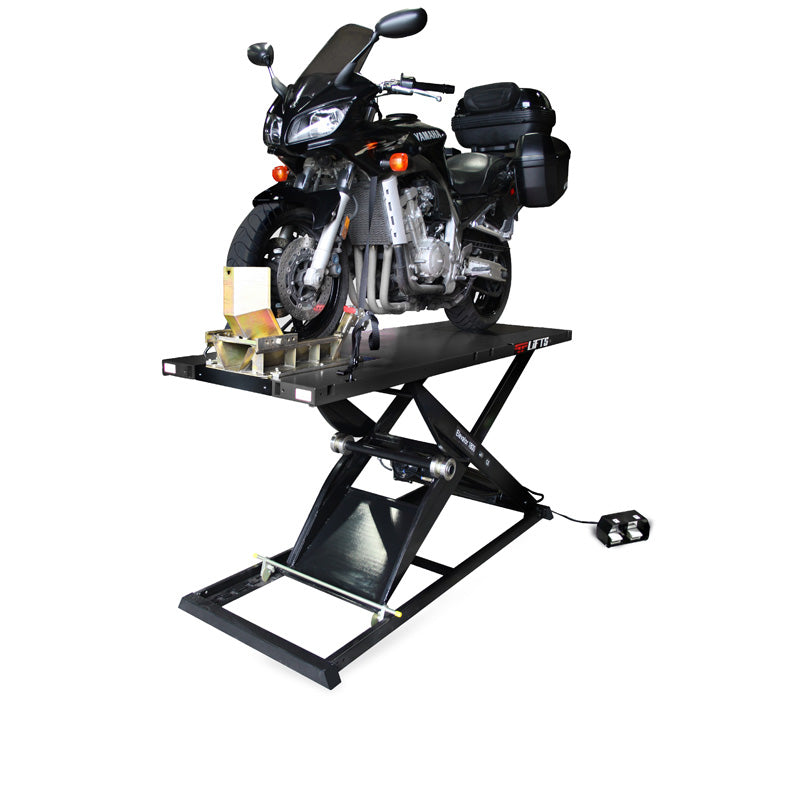

T LIFTS AIR ELEVATOR BLACK 29.5'X86.5' 1800LBS 10003 _BLACK_

Elevator lift tables are made with thick 10 gauge steel, rugged enough to handle the heaviest vehicles. We start with a quality frame and rectangular base, a footprint that ensures safety in lifting and safety in working. The base frame is fitted with a tow bar that accepts an optional wheel dolly, the base frame is also pre-drilled to accept an optional wheel kit which allows for easy placement and storage. A safety locking mechanism is built into the base with 4 and 5 settings, depending on the model, to adjust to your height. In option, there is also a fully adjustable chock allowing the table to handle bikes of all kinds, front and rear wheel drop down panels make service work easy.

• Air operated 1800 lb capacity lift table
• 5 safety locking positions for height
• 10 gauge steel thickness

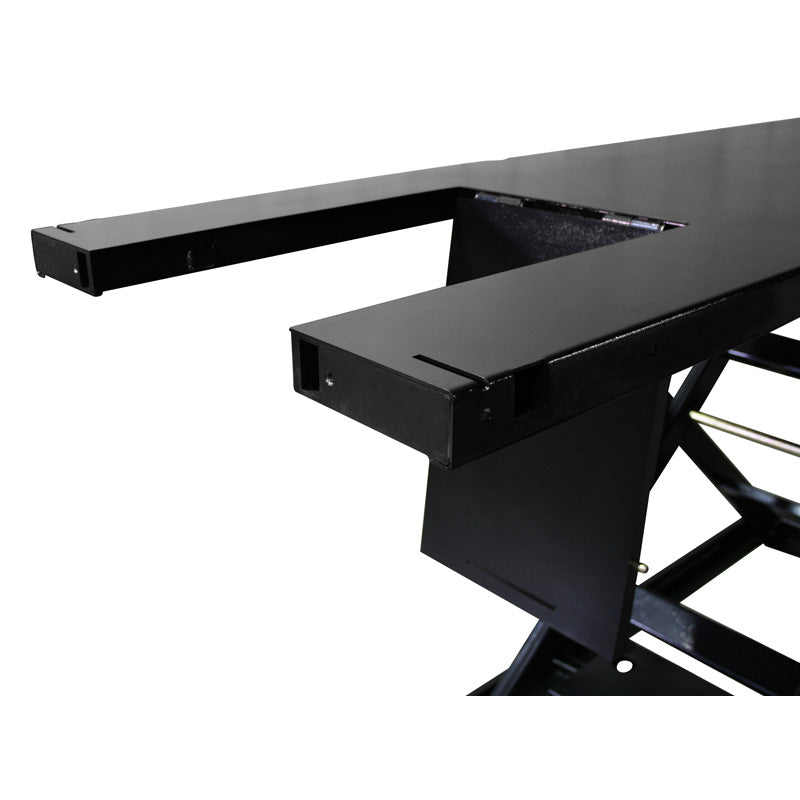

• Table cutouts for tie straps
• 90-120 PSI air required
• 2 step up/down air powered foot pedal

Size:
Length: 86.5”
Width: 29.5”
Lifting height: 40”
Collapsed height: 8”
Lift table weight: 532 lb
Loading ramp length: 46”
