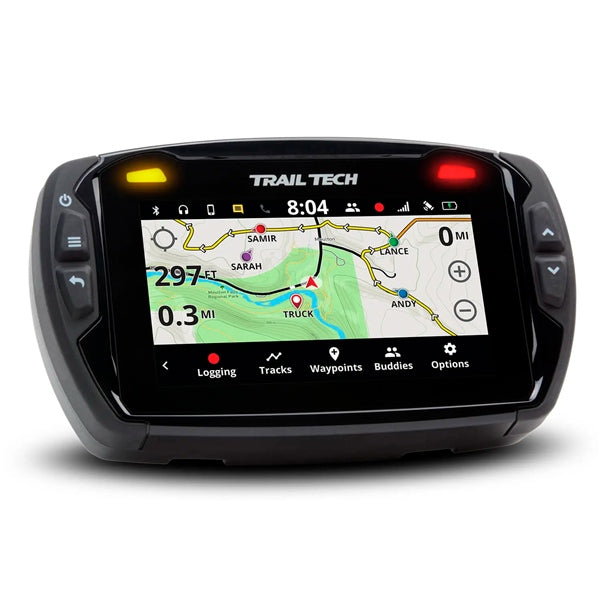

TRAILTECH VOYAGER PRO KIT 10MM TRAILTECH 922-126

The Voyager Pro Air Cooled is designed for air-cooled machines equipped with 10mm spark plugs. It delivers a complete GPS solution combining advanced navigation, buddy tracking, and vehicle integration.

Voyager Pro offers a variety of model-specific and universal kits for complete vehicle integration. All kits include mounting hardware, a tach sensor, and a power connection. Temperature and wheel sensors vary by kit.

Adventure Begins Here!

Key Features of the Voyager Pro

• Display: 4" glove-friendly color touchscreen visible in all lighting conditions, especially direct sunlight. Rated IP67 for maximum durability.
• Buddy Tracking: Track up to 20 riders using built-in radio frequency technology. Customize rider names and use the Buddy Beacon feature for emergency notifications. No cellular coverage required.
• POLARIS RIDE COMMAND Compatible: Buddy Tracking integrates with the POLARIS RIDE COMMAND Group Ride network, allowing all riders to appear on the same map screen.
• Bluetooth Connectivity: Connect smartphones and communication devices to receive calls and texts, stream music, and control key functions through the GPS.
• Navigation & Mapping: Includes pre-loaded North American maps, GPX import/export capability, custom waypoints, and GEO PDF compatibility.
• Vehicle Integration: Displays essential vehicle data including engine temperature, RPM, battery voltage, speed, and distance.
• Battery: Requires a 12V DC power source. Do not leave the unit powered on when leaving the vehicle to prevent battery drain.
• Quick Removal Dock: Lockable dock provides secure mounting and enables quick transfer between vehicles. Compatible with the AMPS mounting pattern.

Summary

Voyager Pro is a comprehensive GPS solution designed for adventure riders. Built for harsh off-road environments, it combines navigation, buddy tracking, POLARIS RIDE COMMAND compatibility, and vehicle monitoring in one rugged package.

Overview & Specs

Functions

• Speed (SPD): 0-320 KMH
• Distance (DST): 0-999,999 KM
• Elevation (ELV): 9,000 Meters
• Engine Temp (ENG): -40°C to 210°C
• Accumulated Run Time: 0-99,999 Hours
• GPS Record Rate: 1, 2, 5 Seconds / 1, 5, 10 Meters

Power

• External Power Input: 8V-16V DC
• Internal Battery: 3.7V 3100mAh Li-Ion
• Battery Life (Typical Use): 1 Hour
• Battery Life (100% Backlight): 45 Minutes
• Battery Charge Time: 3-8 Hours
• Charge Temperature Range: 0°C-55°C

Features

• Environmental Rating: IP67
• Mounting Pattern: AMPS 30x38mm
• External Memory: MicroSD up to 64GB
• Internal Memory: 32GB
• Screen Size: 480x272px, 101mm diagonal (50.5 x 89.2mm)
• Physical Dimensions: 144 x 90 x 47mm
• Physical Weight: 410g
• Operating Temperature: 0-60°C
• Storage Temperature: -20-80°C
