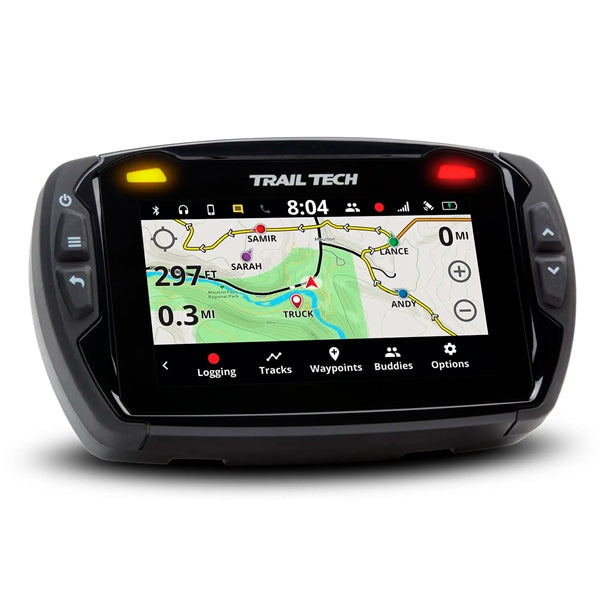

TRAILTECH VOYAGER PRO KIT FIT THERMOSTATS 922-132

The Voyager Pro Thermostat Kit is designed for motorcycles equipped with 1/8 x 28 BSPP thermostat fittings. This rugged GPS provides a complete solution for navigation, buddy tracking, and vehicle monitoring for adventure and off-road riders.

Voyager Pro offers a variety of model-specific and universal kits for complete vehicle integration. All kits include mounting hardware, a tach sensor, and a power connection. Temperature and wheel sensors vary by kit.

Adventure Begins Here!

Key Features of the Voyager Pro

• 4" Color Touchscreen Display: Glove-friendly and easy to read in all lighting conditions, especially direct sunlight. Built to withstand harsh conditions with an IP67 rating.
• Buddy Tracking: Track up to 20 riders using built-in radio frequency technology. Create groups, customize rider names, view real-time locations, and use the Buddy Beacon feature for emergencies. No cellular service required.
• POLARIS RIDE COMMAND Compatible: Works with the POLARIS RIDE COMMAND Group Ride network to display all riders on the same map screen.
• Bluetooth Connectivity: Connect smartphones and communication systems to receive calls, texts, stream music, and control functions directly through the GPS.
• Navigation & Mapping: Includes preloaded North American maps, GPX file import/export capability, custom waypoints, and GEO PDF support.
• Vehicle Integration: Displays critical vehicle data including engine temperature, RPM, battery voltage, speed, and distance.
• 12V Power Requirement: Operates from a 12V DC power source. To prevent battery drain, do not leave the unit powered on when the vehicle is unattended.
• Quick Removal Dock: Lockable dock allows secure installation and quick transfer between vehicles. Compatible with the AMPS mounting pattern.

Summary

Voyager Pro is a comprehensive GPS solution for adventure riders. Designed for harsh off-road environments, it combines advanced navigation, buddy tracking, POLARIS RIDE COMMAND compatibility, and vehicle monitoring features in one rugged device.

Overview & Specs

Functions

• Speed (SPD): 0-320 KMH
• Distance (DST): 0-999,999 KM
• Elevation (ELV): 9,000 Meters
• Engine Temp (ENG): -40°C to 210°C
• Accumulated Run Time: 0-99,999 Hours
• GPS Record Rate: 1, 2, 5 Seconds / 1, 5, 10 Meters

Power

• External Power Input: 8V-16V DC
• Internal Battery: 3.7V 3100mAh Li-Ion
• Battery Life (Typical Use): 1 Hour
• Battery Life (100% Backlight): 45 Minutes
• Battery Charge Time: 3-8 Hours
• Charge Temperature Range: 0°C-55°C

Features

• Environmental Rating: IP67
• Mounting Pattern: AMPS 30x38mm
• External Memory: MicroSD up to 64GB
• Internal Memory: 32GB
• Screen Size: 480x272px, 101mm diagonal (50.5mm x 89.2mm)
• Physical Dimensions: 144 x 90 x 47mm
• Physical Weight: 410g
• Operating Temperature: 0-60°C
• Storage Temperature: -20-80°C
