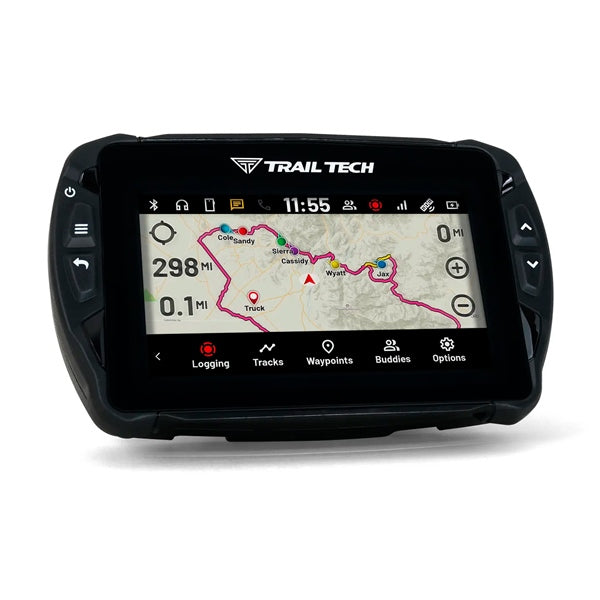

TRAILTECH VOYAGER PRO4 UTV KIT 925-UTV

Key Specs Summary

• Buddy Tracking with included V2V antenna; supports up to 20 riders, requires no cell service, and is compatible with Polaris RIDE COMMAND Group Ride vehicles.
• 4.3 in WQVGA display with 1000 nit brightness.
• NXP i.MX 6 dual-core applications processor.
• u-blox MAX-M10S concurrent multi-GNSS receiver with GPS, GLONASS, Galileo, and BeiDou support.
• Plastic quick-release docking station with RAM ROPS mounting hardware and flat AMPS plate.
• 9-16 V DC external power plus internal 3.7 V 3100 mAh Li-ion backup battery.
• IP67 environmental rating, Bluetooth 5.1, and microSD support up to 64 GB.

Core Device Specifications

• Head Unit Part Number: 9205-R2.
• Display Type: 4.3 in WQVGA TFT LCD, landscape orientation.
• Touchscreen Type: Projected capacitive touchscreen.
• Display Resolution: 480 x 272 px.
• Screen Brightness: 1000 nit.
• Application Processor: NXP i.MX 6 dual-core applications processor.
• CPU Architecture: Dual-core Arm Cortex-A9.
• System Memory: 8 Gb RAM.
• Internal Memory: 32 GB.
• External Memory Support: microSD up to 64 GB.
• External Power Input: 9-16 V DC.
• Internal Battery: 3.7 V 3100 mAh Li-ion.
• Power Draw, Shutdown: 0 W.
• Power Draw, Sleep: 100 mW.
• Power Draw, Low: 1.2 W.
• Power Draw, Max: 2 W.
• Battery Life, Typical Use: 2 hours.
• Battery Life, 100% Backlight: 45 minutes.
• Battery Charge Time: 6.5 hours.
• Charge Temperature Range: 16-45°C (60.8-113°F).
• Environmental Rating: IP67.
• Operating Temperature: -10-45°C (14-113°F).
• Storage Temperature: -10-45°C (14-113°F).
• Temperature Display Range: -10-210°C (14-410°F).
• Physical Dimensions: 144 x 90 x 47 mm (5.67 x 3.54 x 1.85 in).
• Physical Weight: 410 g (0.90 lb).
• Mounting Pattern: AMPS 30 x 38 mm.
• Dock Style: Hard mount with quick-release.
• Certifications / Standards: IP67, FCC, IC, CE.

GNSS, Mapping & Recording

• GNSS Chipset: u-blox MAX-M10S.
• GNSS Receiver Type: Concurrent multi-GNSS receiver.
• Supported Constellations: GPS, GLONASS, Galileo, BeiDou.
• GPS Accuracy: 1.5 m.
• GPS Update Rate: 10 Hz.
• Speed Range: 0-320 km/h.
• Distance Range: 0-999,999 km.
• Elevation Range: Up to 9,000 m.
• Accumulated Runtime: 0-99,999 hr.
• GPS Record Rate Options: 1, 2, 5 sec / 1, 5, 10 m.
• Supported File Types: GPX, GeoPDF, Raster MBTiles.

Onboard File Support

• GPX Recording & Export: View your actively recording track on the device and save or export recorded rides as GPX files, including waypoints.
• GPX Import: Import previously exported GPX files or compatible custom GPX files created with route-planning tools.
• GeoPDF: Import georeferenced single-image map overlays.
• Raster MBTiles: Import compatible raster MBTiles map packages with multiple zoom levels for offline mapping.
• Custom Map Storage Note: Available space for custom maps is typically around 2 GB with default maps installed. Replacing the default maps can increase available space to approximately 20 GB.

Buddy Tracking & Group Ride

• Buddy Tracking Technology: Radio-based rider-to-rider location network using GPS position data.
• Group Capacity: Supports up to 20 riders in a single group.
• Cell Service Requirement: Not required.
• Network Behavior: Mesh-capable network that can relay location updates through other riders in the group.
• Typical Buddy-to-Buddy Range: Approximately 0.5-1.5 miles.
• Range Note: Range improves with line of sight and fewer obstructions; terrain, installation, and environmental conditions affect real-world results.
• Required Hardware: External V2V antenna required and included in kit.
• Antenna Mounting Guidance: Mount the V2V antenna vertically for best performance.
• Compatible Group Ride Systems: Compatible with Polaris RIDE COMMAND Group Ride vehicles.
• Buddy View: Displays group members on the map screen with name and location.
• Buddy Features: Buddy Tracking, Buddy Tails, Navigate to Buddy, Buddy Beacon.
• Buddy Beacon Note: Group-alert and regroup function only; not a rescue beacon.

Wireless, Audio & Interfaces

• Bluetooth Version: 5.1.
• Bluetooth Profiles / Functions: HSP, HID.
• Bluetooth Phone / Headset Pairing: Music controls, calls, and text alerts with a compatible phone and headset.
• Dock Connector to Head Unit: Gold pogo pins.
• Dock Rear Harness / Sensor Leads: 4 JST leads.
• Power Connector: Female 3-pin JST.
• Buddy Tracking V2V Antenna Connector: SMB (included).
• GPS Antenna Connector: SMB.
• Wheel Sensor Connector: Male 2-pin JST (sold separately).
• Tach / Ignition Sensor Connector: Female 2-pin JST.
• Temperature Sensor Connector: Female 4-pin JST.
• Ambient Temperature Sensor: Integrated ambient temperature sensor lead on dock.

UTV Kit Dock, Mount & Fitment

• Dock Part Number: 9200-DOCK.
• Dock Material: Plastic.
• Dock Release Style: Quick-release hard mount.
• Buddy Tracking Antenna: 9200-V2V1.
• Power Wire: 9000-1011 (48 in).
• Ignition Sensor: 9000-1023P Voyager Ignition Sensor (2550 mm).
• Temperature Sensor: V300-001 Screw-In Temperature Sensor (M6x1, 580 mm).
• Temperature Sensor Extension Lead: V300-120 (120 in).
• Accessory Plug Wire: 9200-ACC Car Charger Accessories Plug Wire.
• ROPS Mount Assembly: 026-FS RAM ROPS Mount Kit.
• AMPS Mount Bolts Kit: 9200-PK1.
• AMPS Flat Mount Plate: 3330028 CNC Aluminum Plate.
• Intended Vehicle Type: UTV / Side-by-Side.
• Compatibility / Fitment: UTVs and side-by-sides with regulated 9-16 V DC power.
• Mounting Type: ROPS / tube RAM mount with flat AMPS plate.
