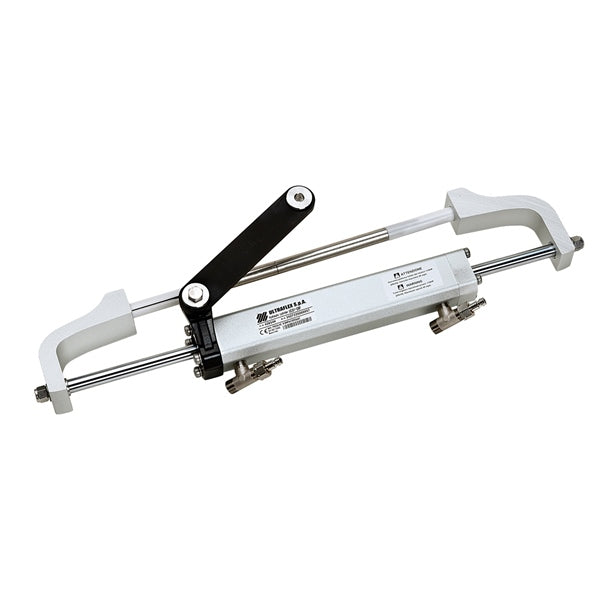

UFLEX CYLINDER GOTECH 81CC FM 7.3" UFLEX UC81-OBF

Balanced: the number of turns lock-to-lock is equal port to starboard and vice-versa.

Depending on the applications on the outboard engine, the UC81-OBF can be installed port or starboard.

SPECIFICATIONS

• Volume : 81 cc - 4.9 cu.in
• Output force : 222 kg - 489 lbs
• Inside diameter : 27,4 mm - 1.08"
• Stroke : 186 mm - 7.3"
• 3/8" (9,5 mm) Fittings : For pressure flex hose
• Bleed fittings : DNS Quick connect
